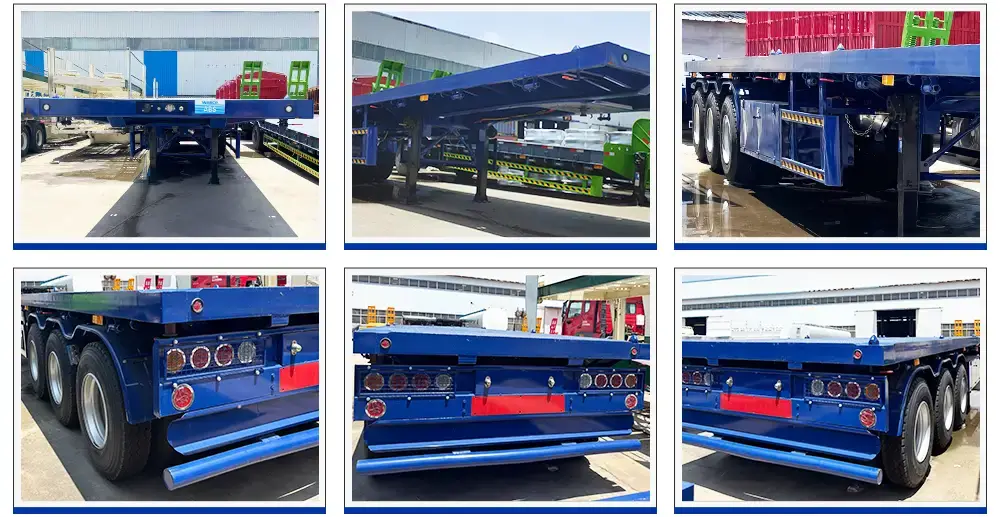

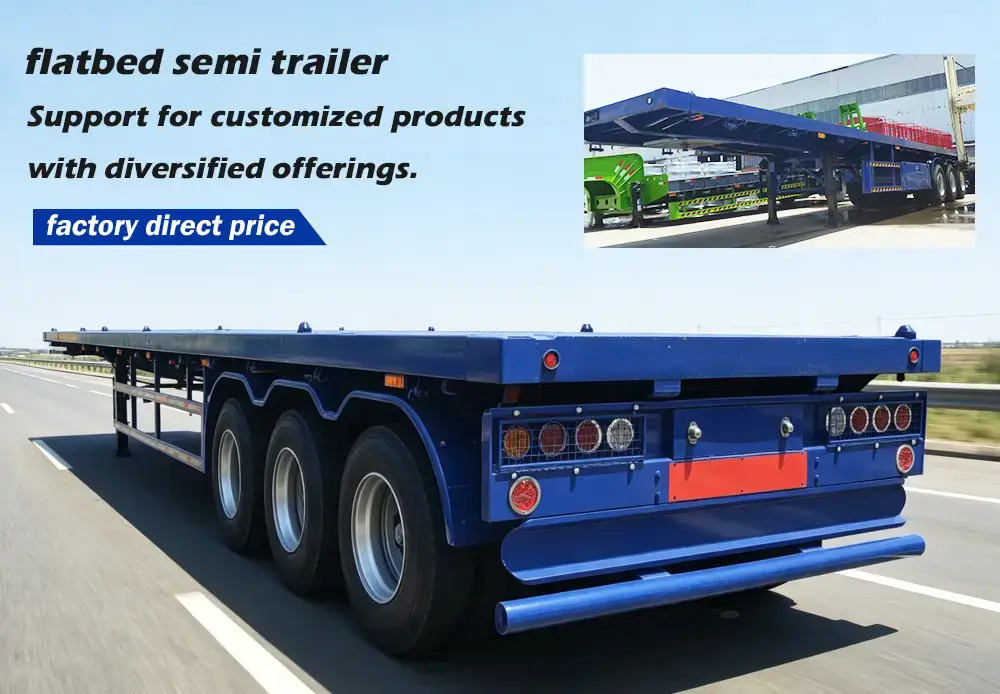

This New 3 Axle Flatbed Trailer is crafted from industry-leading Q345B high-strength steel, perfectly suited for 20ft/40ft containers and bulk cargo transportation. Not only is it durable and has extremely low maintenance costs, but it also offers a high return on investment (ROI) at factory-direct prices, helping your logistics business operate efficiently and profitably!
Premium Q344B High-Tensile Steel: Main beams are reinforced with advanced welding techniques to prevent deformation under maximum payload.
Reinforced Suspension System: Equipped with heavy-duty leaf springs to withstand various harsh road conditions seamlessly.
Optimized Anti-Skid Floor: The durable platform is built to prevent cargo shifting, ensuring maximum safety during transit.
Global Standard Axles: Fitted with top-tier Fuwa or BPW axles for lower maintenance costs and longer service life.
Polyurethane Paint Finish: Offers exceptional anti-corrosion protection, maintaining structural integrity across extreme climates.
Custom trailer available, contact us to get lowest factory cost!
| Parameter | Detailed Technical Specifications |
|---|---|
| Material & Durability | Main Beam Q345B High-Tensile Steel. Upper plate: 14mm, Lower plate: 16mm, Middle plate: 8mm. Designed for heavy-duty load and anti-deformation. |
| Dimensions & Weight | External Dimensions: 12500mm x 2500mm x 1550mm (Standard 40ft). Tare Weight: Approx. 7200kg - 7500kg. |
| Loading Capacity | Payload: 50 Tons - 60 Tons (Heavy Duty Structural Reinforcement). |
| Axle Configuration | 3 Axles x 13 Tons / 16 Tons. Brands: FUWA / BPW / ZY optional (Factory certified ISO standard). |
| Suspension System | Heavy-duty mechanical leaf spring suspension (10pcs/13mm thickness per axle). Air suspension or bogie suspension optional. |
| Tire & Rim Specs | Tire: 12.00R20 / 315/80R22.5 Tubeless Tires (12 Pcs + 1 Spare Tire). Rim: 9.00-22.5 steel rims. |
| Braking System | Dual-line pneumatic braking system. WABCO RE 6 relay valve. Optional: T30/30 brake chamber & ABS system. |
| Platform Floor | 3mm thickness checkered plate / diamond plate with high anti-slip rating. |
| Twist Locks | 12 units of ISO standard heavy-duty retractable twist locks for 1x40ft or 2x20ft containers. |
| King Pin & Landing Gear | King Pin: 2.0 inch (50#) or 3.5 inch (90#) JOST bolting type. Landing Gear: JOST / FUWA D200T standard 28 Tons two-speed manual operation. |
| Electrical & Accessories | 24V system, 7-pin ISO socket. Full LED waterproof tail & side lights. Includes 1 standard steel toolbox and 2 spare tire carriers. |
| Surface Treatment | Complete chassis sandblasting to clean rust. 1 coat of anti-corrosive primer + 2 coats of premium polyurethane topcoat (Color customizable). |

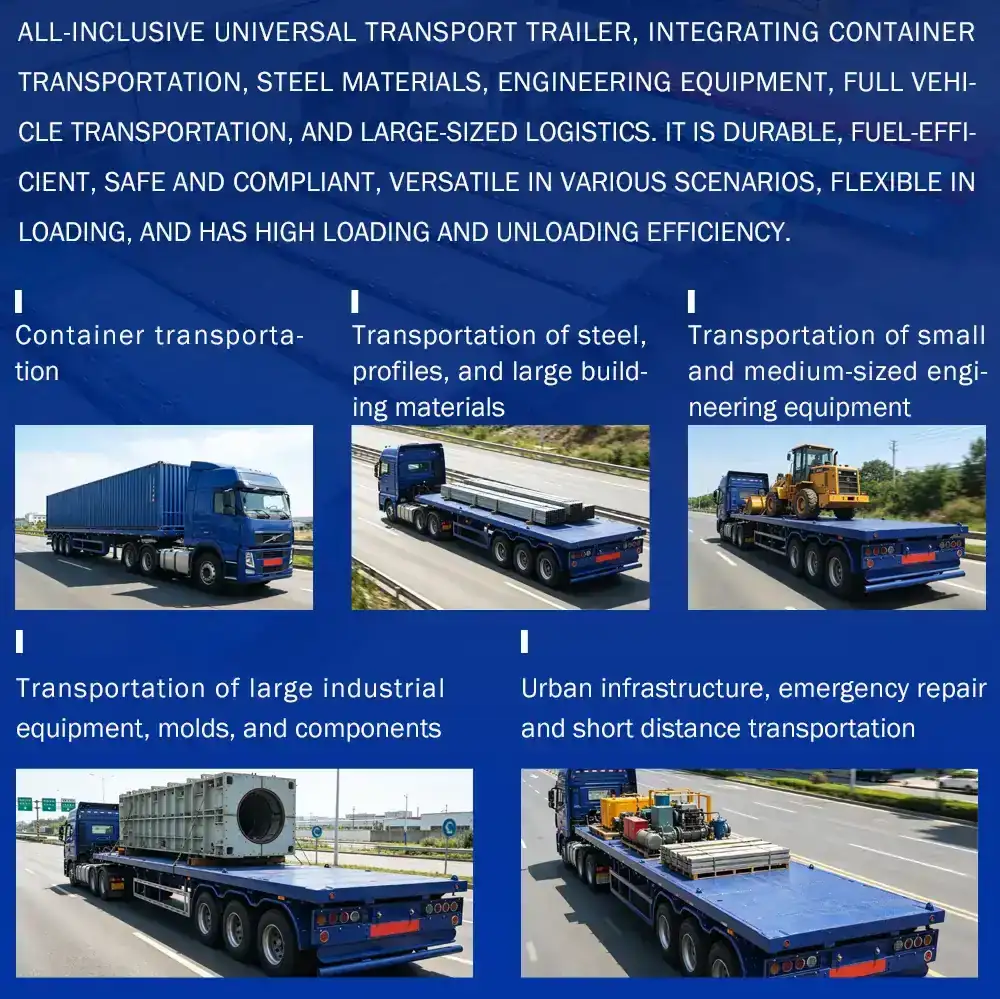

This heavy-duty semi trailer delivers maximum performance in diverse shipping and construction environments. It is highly effective in port logistics for container hauling, mining sectors for transporting heavy equipment, infrastructural sites for steel and timber distribution, and cross-border commercial freight.
Transportation methods: Ro-Ro, LCL (Less than Container Load), and Container Transport. We can provide the most economical semi-trailer transportation solutions for each of these three modes, tailored to the specific needs of our clients.
Need a tailored transport solution?

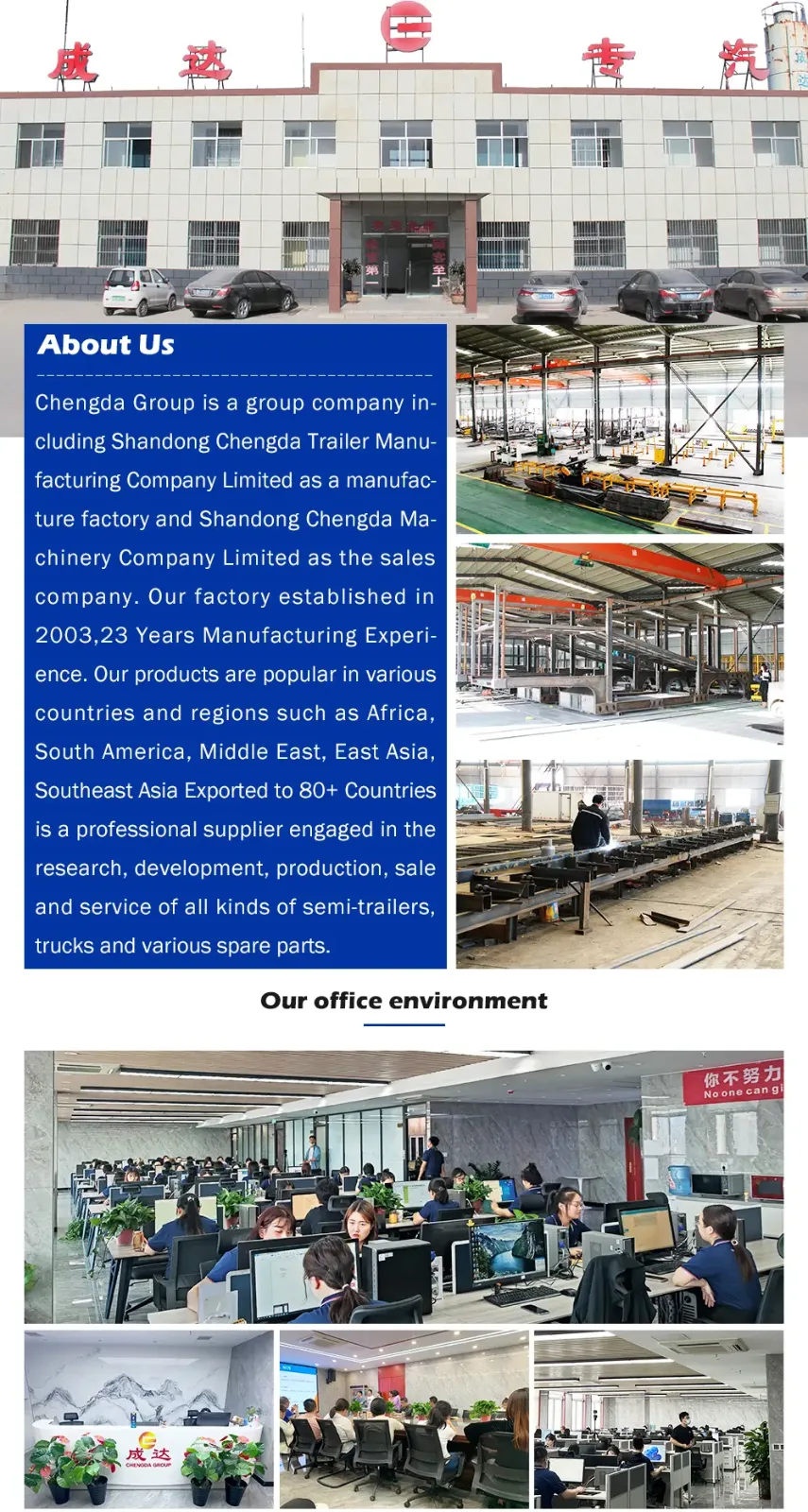

Chengda Group is a leading semi-trailer manufacturer in China, specializing in producing flatbed trailers, low-bed trailers, skeleton trailers, dump trailers, and other types of trailers. We have over 20 years of experience in the industry and have built a reputation for delivering high-quality products at affordable prices.
With a proven track record of high quality and a strong reputation, we have obtained government-authorized ISO, CCC, CE, and B&V certifications. We have our own factory and are a professional semi-trailer manufacturer with 200 employees and annual sales of 50 million. Our products are popular in South Asia, the Middle East, Africa, and South America.
1.Does your company has your own factory? |
Yes,we have a factory ourself,our factory is very famous in shan dong,china. |
2.Do you support customization? |
Definitely!We can make the trailers based on your requirement. |
3.What's your minimum quantity? |
1 set. |
4.How to trust us? |
We provide customers with high-quality products and adhere to integrity. Welcome to visit our company or communicate through video call. |
5.What's your payment term? |
We accpet both T/T and L/C T/T:30% deposit by T/T,70% balance should be paid before shipment. |
6.How about the delivery time? How do you transport the semi trailers ? |
A: Within 15-35 days after we confirm you requirement. We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee. |
