The 2 Axle 40ft Flatbed Semi-trailer offers an agile and lightweight logistics solution, reduction in tare weight by 15% compared to 3-axle alternatives to optimize fuel economy. Engineered for medium-capacity cargo, it stands as a highly efficient, high-ROI choice for regional fleet operations.
| Parameter | Detailed Technical Specifications |
|---|
| Material & Durability | Main Beam Q345B High-Tensile Steel. Upper plate: 14mm, Lower plate: 16mm, Middle plate: 8mm. Lightweight design with high fatigue resistance. |
| Dimensions & Weight | External Dimensions: 12400mm x 2500mm x 1550mm. Tare Weight: Approx. 5800kg - 6200kg. |
| Loading Capacity | Payload: 30 Tons - 40 Tons (Optimized for medium-duty cargo transport). |
| Axle Configuration | 2 Axles x 13 Tons / 16 Tons. Brands: FUWA / BPW / ZY optional (ISO certified). |
| Suspension System | Heavy-duty mechanical leaf spring suspension (10pcs/13mm thickness per axle). Air suspension optional. |
| Tire & Rim Specs | Tire: 12.00R20 / 315/80R22.5 Tubeless Tires (8 Pcs + 1 Spare Tire). Rim: 9.00-22.5 steel rims. |
| Braking System | Dual-line pneumatic braking system. WABCO RE 6 relay valve. T30/30 brake chamber. ABS optional. |
| Platform Floor | 3mm thickness checkered plate / diamond plate with high anti-slip rating. |
| Twist Locks | 12 units of ISO standard heavy-duty retractable twist locks for 1x40ft or 2x20ft containers. |
| King Pin & Landing Gear | King Pin: 2.0 inch (50#) or 3.5 inch (90#) JOST bolting type. Landing Gear: JOST / FUWA standard 28 Tons two-speed manual operation. |
| Electrical & Accessories | 24V system, 7-pin ISO socket. Full LED waterproof lights. Includes 1 standard toolbox and 1 spare tire carrier. |
| Surface Treatment | Complete chassis sandblasting. 1 coat of anti-corrosive primer + 2 coats of premium polyurethane topcoat. |
Send your demand, free design drawing & best quote for you!
Click for free consultation details
Optimized Lightweight Q345B Steel: Main beams utilize high-tensile steel to guarantee excellent structural durability while maximizing legal payload capacity.
Fuel-Efficient Dual Axle Layout: The 2-axle configuration reduces tire wear and rolling resistance, lowering overall fleet running costs significantly.
Heavy-Duty Mechanical Suspension: Fitted with reliable leaf springs designed to absorb severe shocks and maintain platform stability.
ISO Standard Container Twist Locks: Equipped with 12 units of rugged twist locks to secure cargo and ensure multi-modal transit safety.
Premium Anti-Corrosion Coating: Polyurethane paint finish combined with prior shot-blasting provides strong resistance against rust and extreme weather.

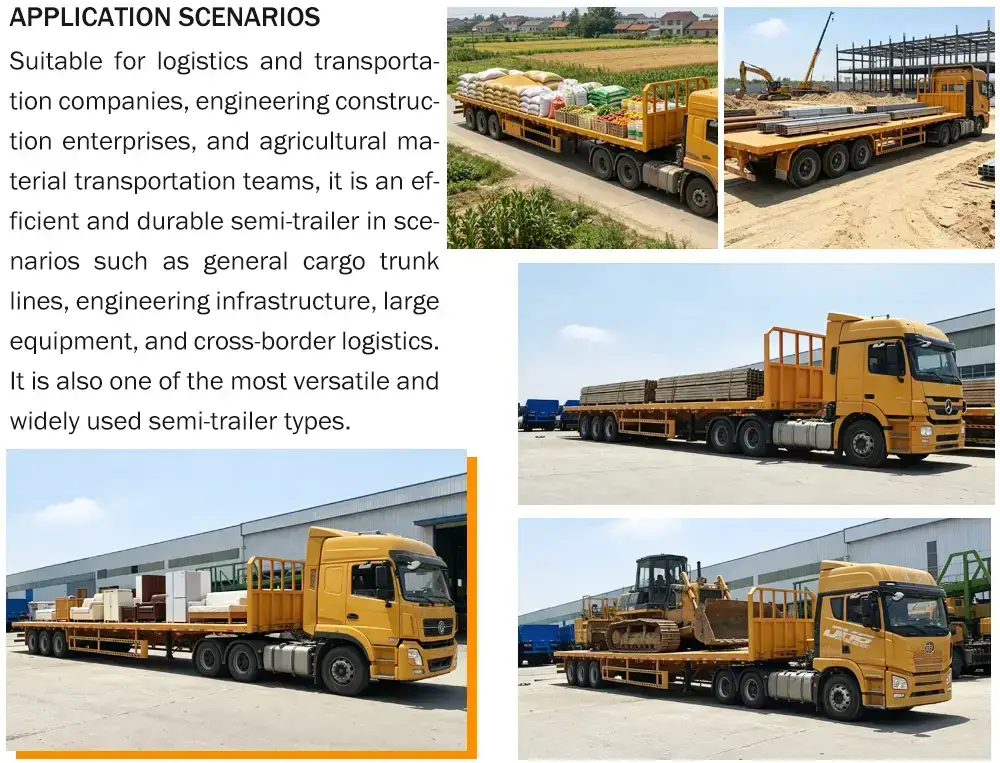

This lightweight semi-trailer performs exceptionally well in port-to-warehouse container shunting and regional logistics networks. It is highly effective for inner-city freight distribution, agricultural bulk transport, construction material delivery, and daily intermodal shipping where maneuvering and fuel efficiency are critical.
Transportation methods: Ro-Ro, LCL (Less than Container Load), and Container Transport. We can provide the most economical semi-trailer transportation solutions for each of these three modes, tailored to the specific needs of our clients.
Need a tailored transport solution?
Get a Free Quote Now
Our company sincerely invites domestic and international customers to visit our factory for on-site inspections. You can tour our semi-trailer production line, welding processes, and testing equipment, and closely examine raw materials, semi-finished products, and finished products. Customers will gain a direct understanding of our product manufacturing processes and quality. Our professional technicians and foreign trade team will accompany you throughout the visit, providing one-on-one answers to questions regarding product configuration, customization options, pricing, and delivery time, allowing you to personally experience the superior performance of our dual-axle 40-foot flatbed semi-trailers.
