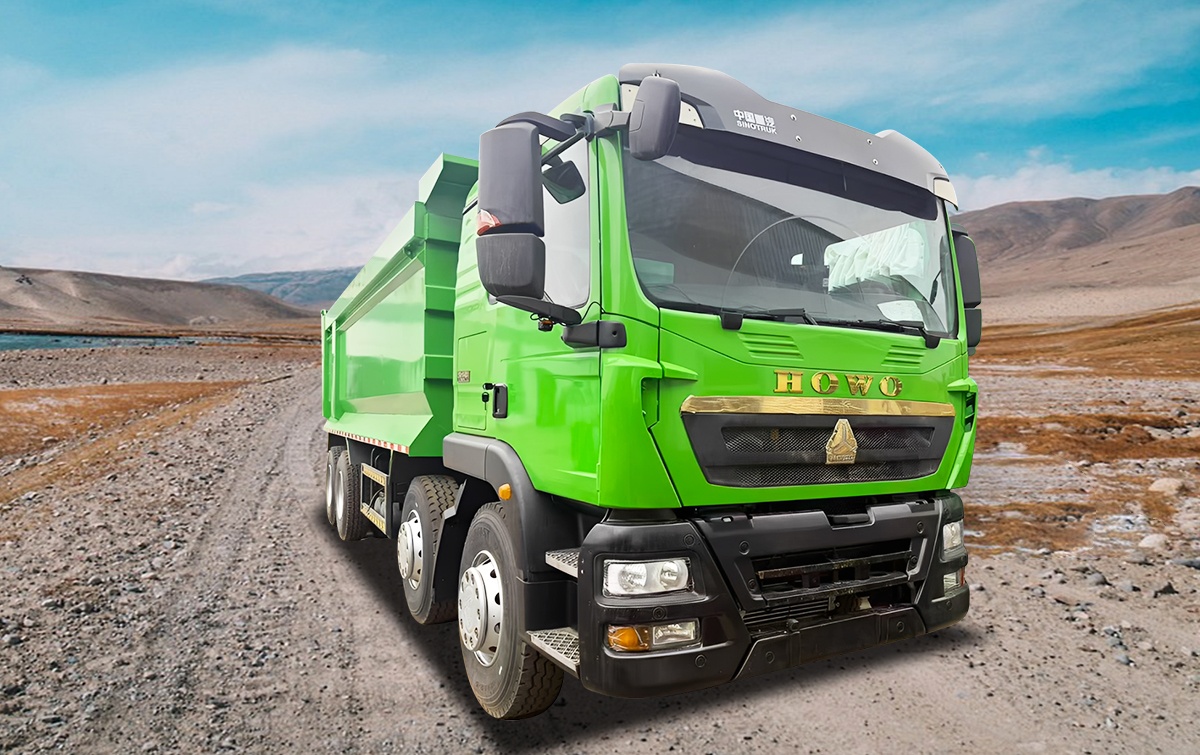

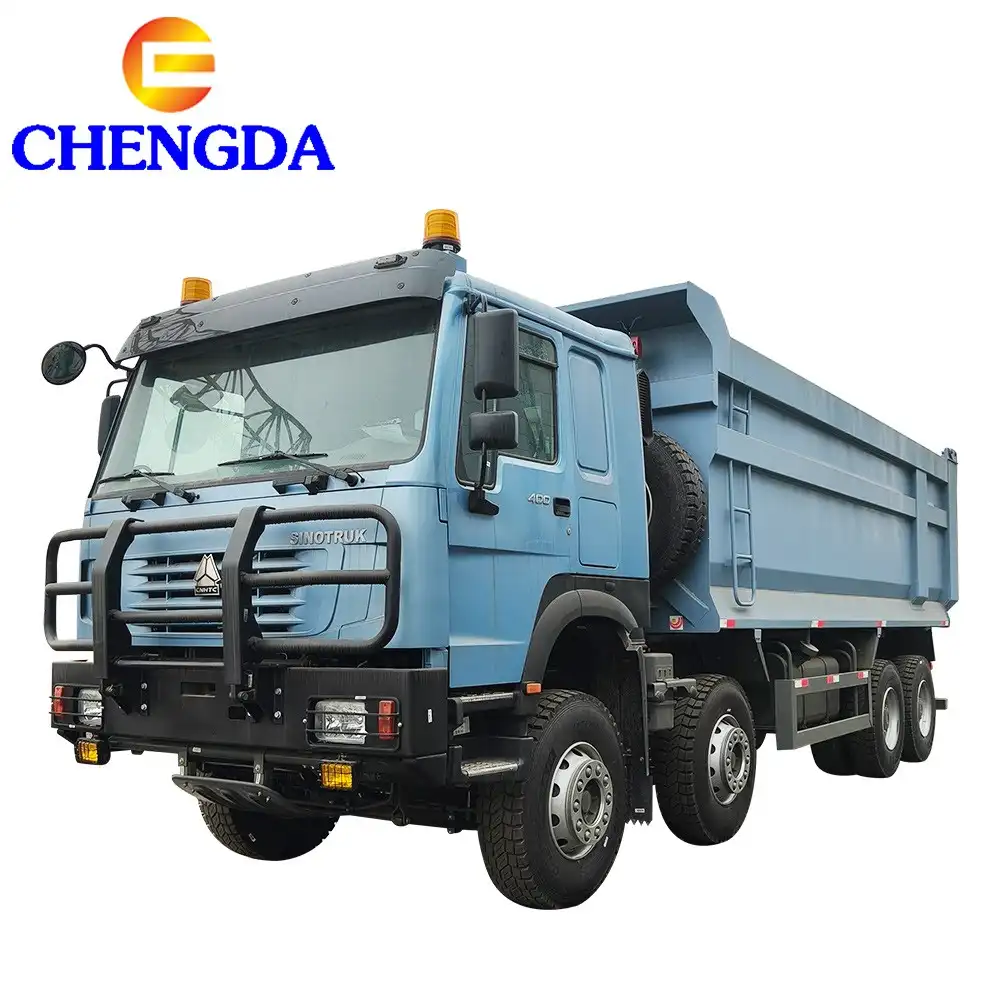

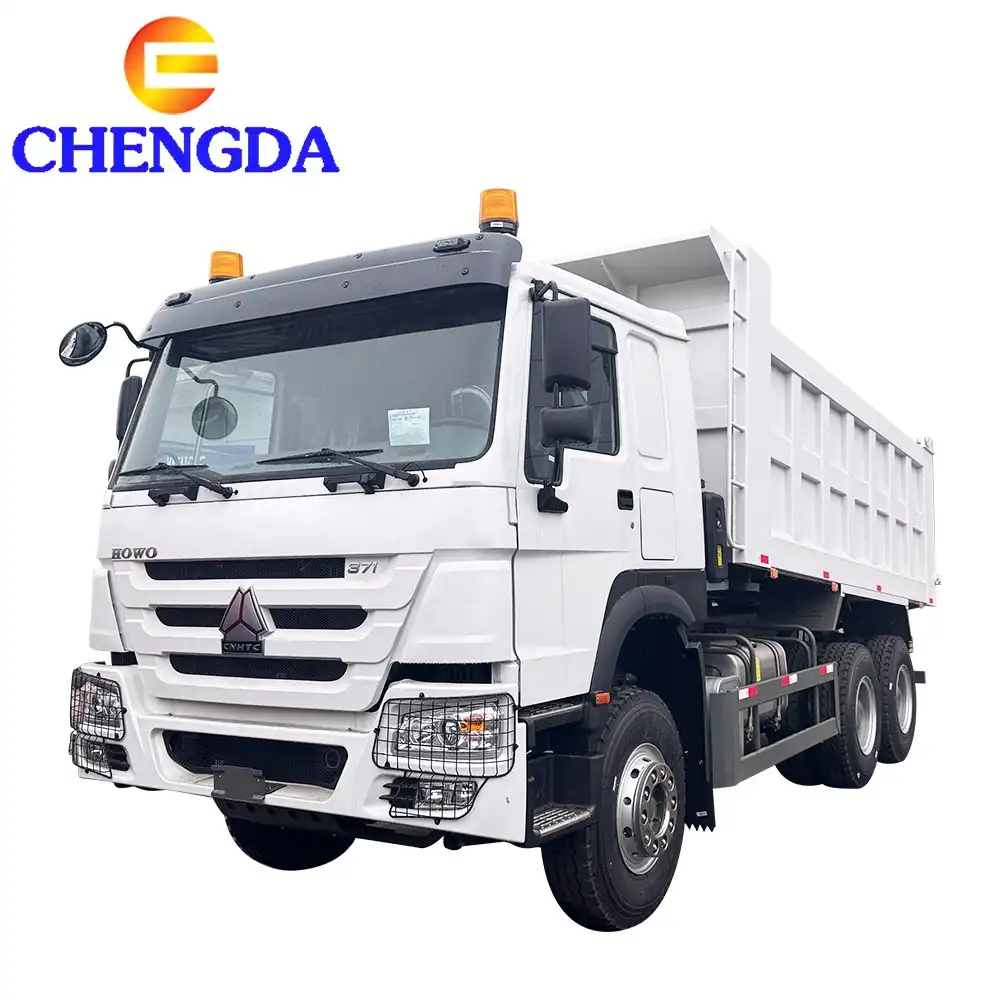

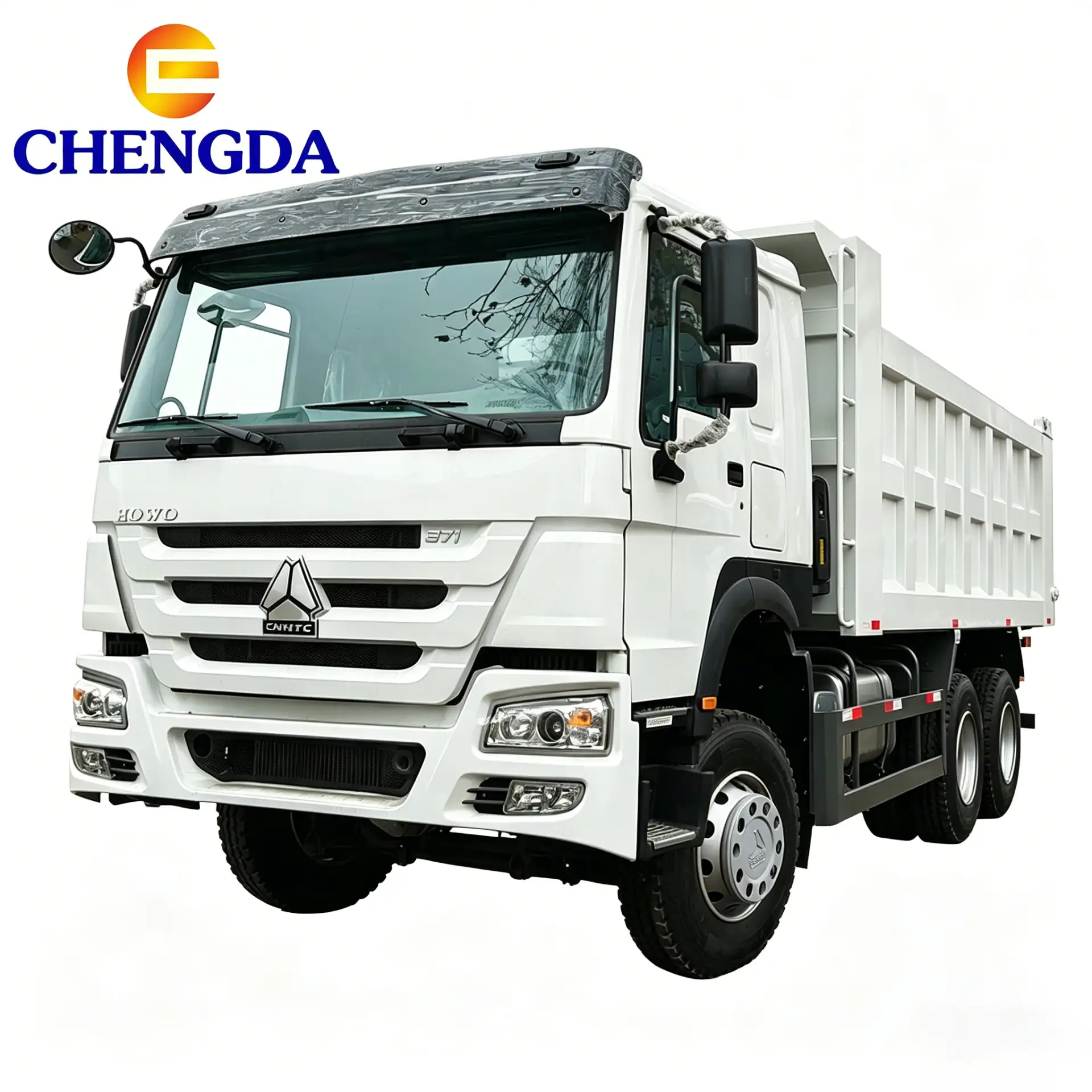

The Sinotruck TX 6X4 Dump Truck is a heavy-duty, reliable, efficient, economical, safe, compliant, and adaptable truck suitable for all working conditions. It Sinotruck TX 6X4 Dump Truck precisely matched to engineering, urban construction, and mining scenarios, making it the first choice for many customers.
Technical parameters
| Parameter | Specification |
|---|
Overall Dimension | 9000×2550×3380mm |
Wheelbase | 4200+1350mm |
Drive Mode | 6×4 drive form |
Total Wheel Number | 10 wheels |
Curb Weight | 10800kg |
Gross Vehicle Weight | 35000kg |
Rated Payload | 24200kg |
Cargo Box Inner Size | 6300×2300×1400mm |
Cargo Box Volume | 20.2m³ |
Cargo Box Material | High strength wear-resistant manganese steel |
Engine Model | Heavy duty diesel engine |
Displacement | 9.7L |
Rated Power | 228kW / 310HP |
Peak Torque | 1350N·m |
Emission Standard | Euro 2 |
Transmission | 10-speed manual gearbox |
Maximum Speed | 72km/h |
Max Climbing Gradient | 26% |
Lifting System | Full hydraulic automatic tipping system |
Tire Specification | 12.00R20 heavy-duty tire |
Braking System | Air pressure brake system |
Fuel Tank Capacity | 350L |
Cab Type | Single row comfortable shock-absorbing cab |
Leave your contact, get exclusive wholesale price now!
Get a Free Quote Now

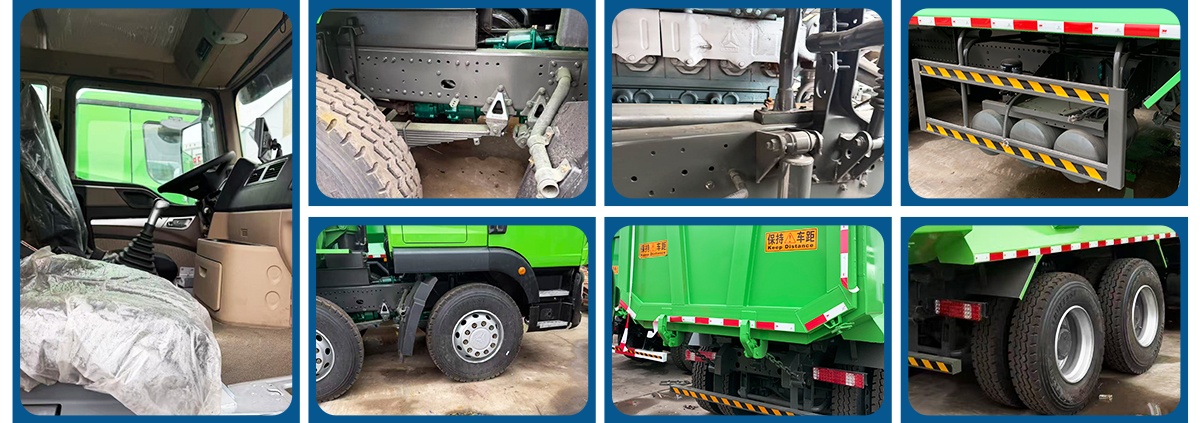

Product Details
Golden Powertrain: High-horsepower Weichai/Sinotruk engine + mature transmission + reinforced rear axle, providing high torque at low RPMs, strong performance in heavy-load starts, hill climbing, and rough road handling, with fast power response and low failure rate.
Reliable Heavy-Duty Load Bearing: High-strength double-layer frame, large-tonnage double drive axle, torsional and impact resistant, suitable for heavy-duty conditions such as slag, sand, gravel, and ore, and resistant to deformation under long-term high-intensity operation.
Outstanding Safety Performance:The cab meets high-strength collision safety standards, the braking system is stable and reliable, and the hydraulic lifting system with safety lock enhances safety during construction site unloading and driving on complex road conditions.
Strong Adaptability:Available in China V/China VI emission standards, adaptable to various scenarios including urban construction, mining, construction sites, and rural roads, ensuring compliant registration and worry-free environmental driving.
Product Applications
Urban construction waste transportation
Sand and gravel/building material transportation
Mining and open-pit mining transportation
Water conservancy and large-scale engineering construction
Rural and industrial park engineering construction
Sanitation and solid waste treatment
Ready to enhance your transport efficiency?
Get a Free Quote Now

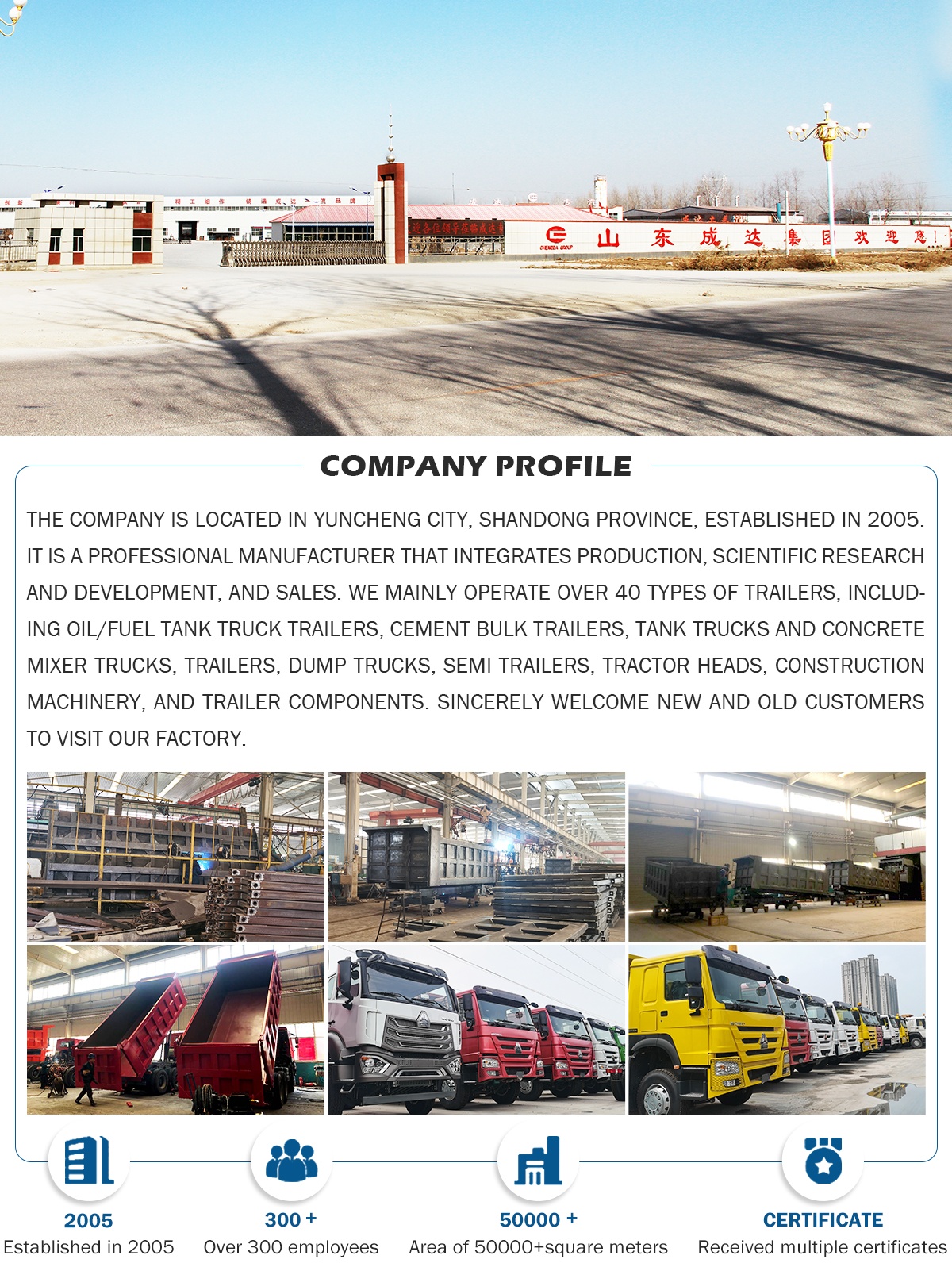

Company Introduction
