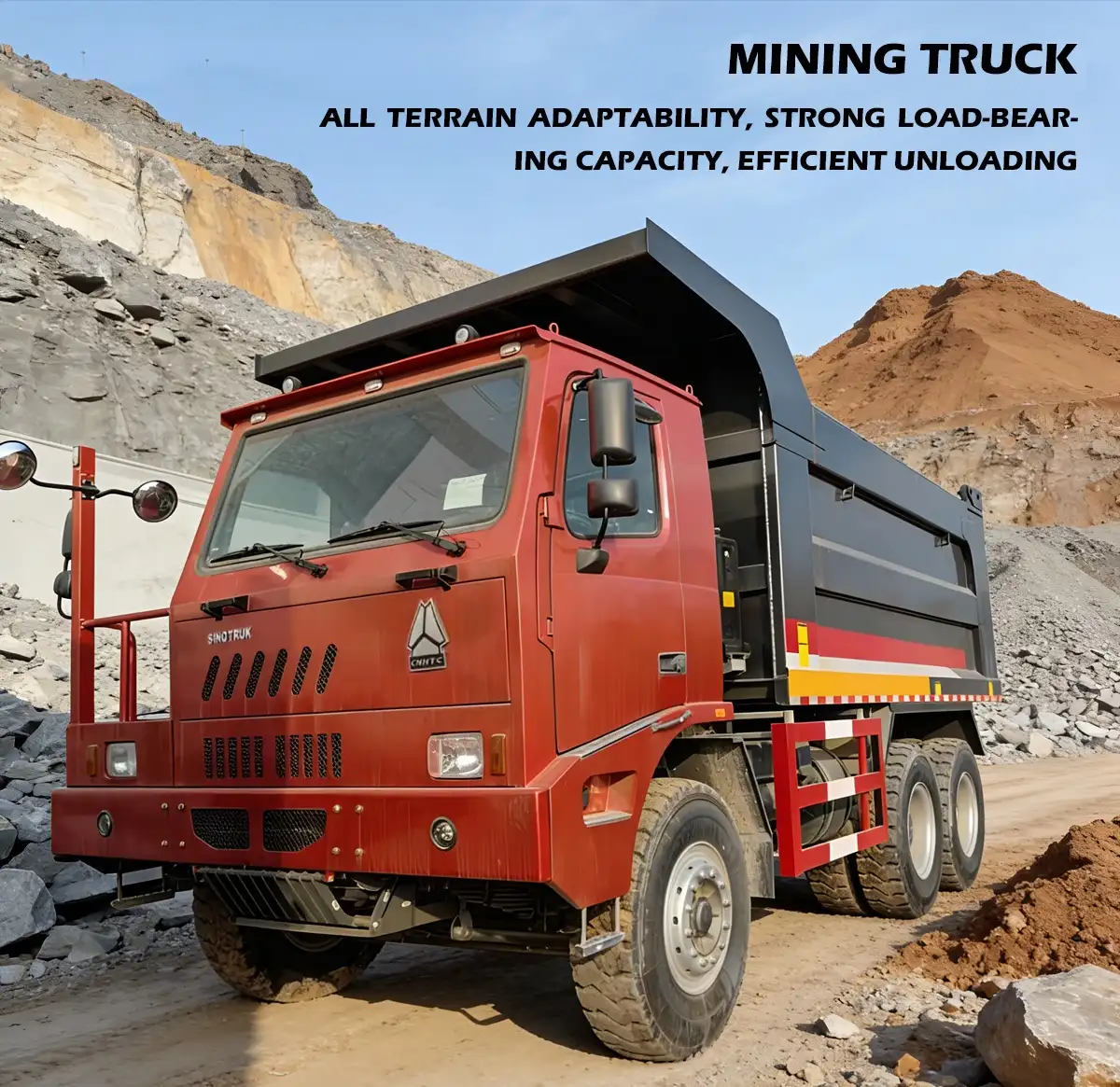

6×4 Mining Dump Truck: Powerful, won't get stuck, stable under heavy loads, low fuel consumption, quick return on investment, flexible on narrow roads, durable and resistant to damage, it is an efficient money-making tool for small and medium-sized mines, quarries, and infrastructure construction sites.
Product Details
Drive and Power
6×4 dual rear axle drive, strong traction, less prone to getting stuck in muddy, gravelly, and steep slopes in mining areas.
High-horsepower, high-torque engine, powerful climbing even when fully loaded, resulting in higher transportation efficiency.
Standard differential lock, strong ability to escape from difficult conditions.
Load Capacity and Stability
Three-axle layout, even load distribution, more stable driving, turning, and unloading under heavy loads.
Reinforced heavy-duty frame and suspension, resistant to bumps and torsion, suitable for harsh mining conditions.
Reasonable weight, allowing for higher haulage and faster speeds while adhering to regulations, resulting in higher operating profits.
Adaptability to Operating Conditions
Moderate wheelbase, small turning radius, more flexible in narrow mine tunnels, quarries, and construction sites.
High versatility, capable of transporting various materials such as ore, coal, slag, and sand.
High body strength, robust and durable, suitable for high-intensity continuous operation.
Ready to enhance your transport efficiency?
Get a Free Quote Now
Technical Specifications
| Parameter | Specification |
|---|
Overall Dimension | 10300×2550×3620 mm |
Wheelbase | 4850+1400 mm |
Drive Mode | 8×4 rear wheel drive |
Wheel Quantity | 12 wheels |
Curb Weight | 13800 kg |
Gross Vehicle Weight | 50000 kg |
Rated Payload | 36200 kg |
Cargo Box Inner Size | 7250×2360×1560 mm |
Cargo Box Volume | 26.5 m³ |
Cargo Box Material | High strength anti-wear manganese steel |
Engine Brand | Weichai Diesel Engine |
Displacement | 12 L |
Rated Power | 320 kW / 435 HP |
Peak Torque | 1920 N·m |
Emission Standard | Euro 2 / Euro 3 |
Transmission Type | Manual gearbox |
Maximum Speed | 65 km/h |
Max Climbing Gradient | 33% |
Tipping System | Full hydraulic automatic unloading |
Tire Specification | 13.00R25 heavy engineering tire |
Braking System | Dual-circuit air brake |
Fuel Tank Capacity | 460 L |
Cab Type | Shock-absorbing single row cab |

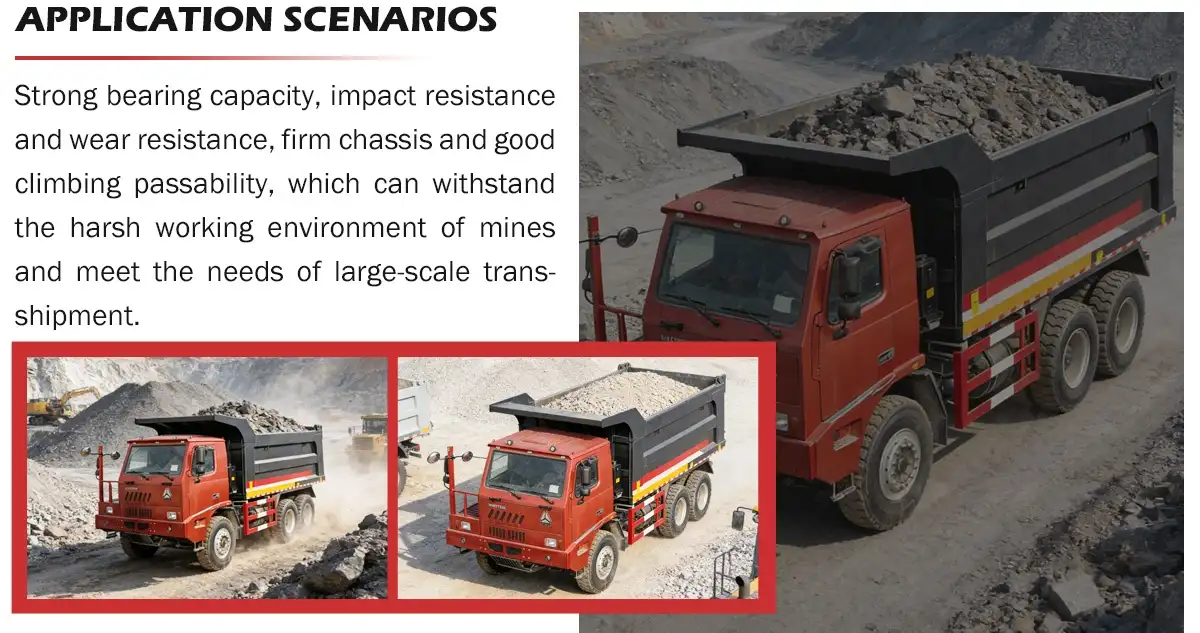

Product Applications
Open-pit mine transportation
Quarries / Sand and gravel aggregate yards
Water conservancy project construction
Infrastructure construction site construction
Internal short-haul transportation within mines
Slag and construction waste removal
Small and medium-sized mines and privately-owned mining areas
Free quote & shipping solution now
Get a Free Quote Now
Company Introduction
Chengda Group is a group company including Shandong Chengda Trailer Manufacturing Company Limited as a manufacture factory and Shandong Chengda Machinery Company Limited as the sales company. Our factory established in 2003,23 Years Manufacturing Experience. Our products are popular in various countries and regions such as Africa, South America, Middle East, East Asia, Southeast Asia Exported to 80+ Countries is a professional supplier engaged in the research, development, production, sale and service of all kinds of semi-trailers, trucks and various spare parts. We do international business more than 10 years, Integrated production, scientific research and development, high quality control and professional sales teams, all those advantages can provide full service of trailers, semi-trailers, trucks and spare parts. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to meet your requirements and ensure customer satisfaction.
