High Quality 70 Tons 4 Axle Cargo Fence Semi Trailer
Send Inquiry
Chat Now
Product Details

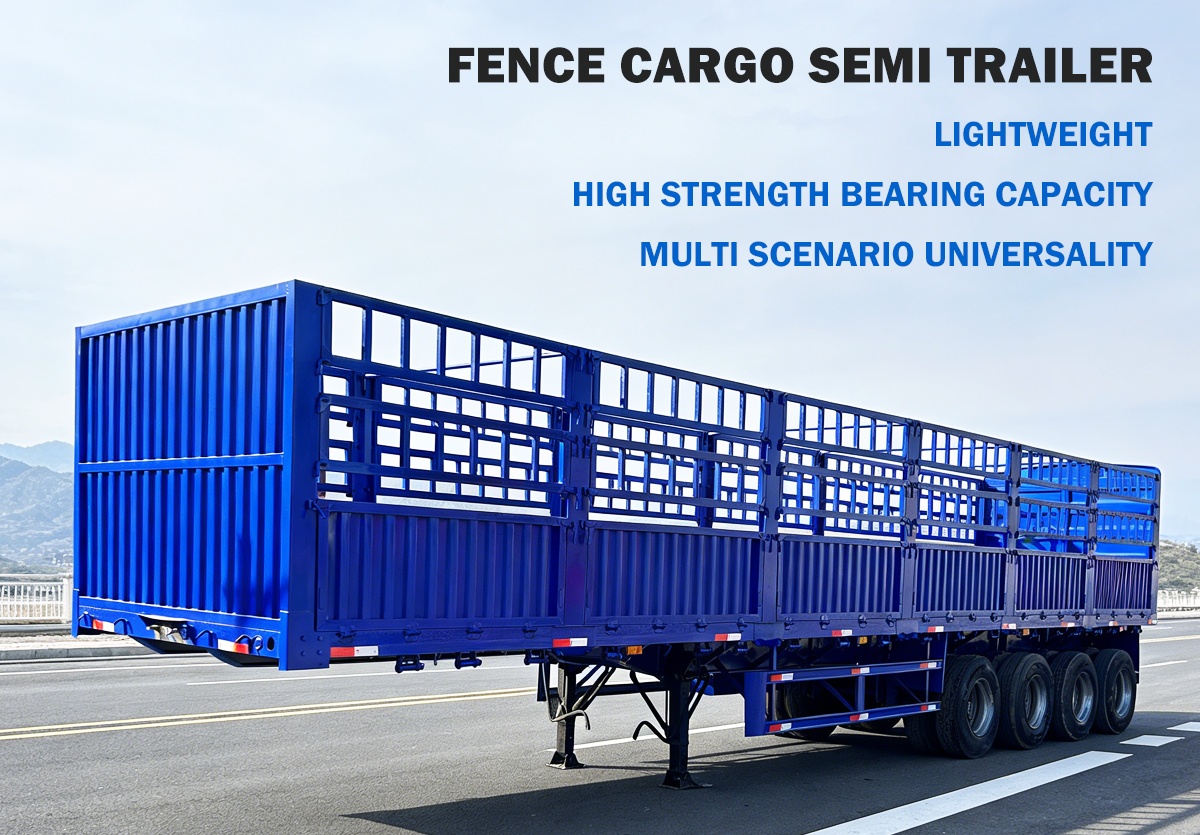

The 4 Axle Fence Semi Trailer is the choice of many customers because 4 Axle Fence Semi Trailer provides them with a comprehensive transportation solution that offers high load capacity, strong stability, versatility, and low cost.
Product Parameters
| Trailer Model | 4 Axle fence Semi Trailer | Axle Number | Three |
Overall Dimension(Lx W x H)(mm) | 12500*2500*(600+1200) | Wheelbase(mm) | 7450+1310+1310 |
| Tare Weight(KG) | 7350 | Suspension system | Mechanical Leaf Spring Suspension |
| Loading Weight( KG) | 40000 | Leaf spring | 90(W)mm*13(Thick)mm*10 Layer |
| Total Weight(KG) | 47350 | Side beam | Q235 16# channel steel |
| Axle Brand | 13TON Axle Chengda Brand | Platform plate | 3mm |

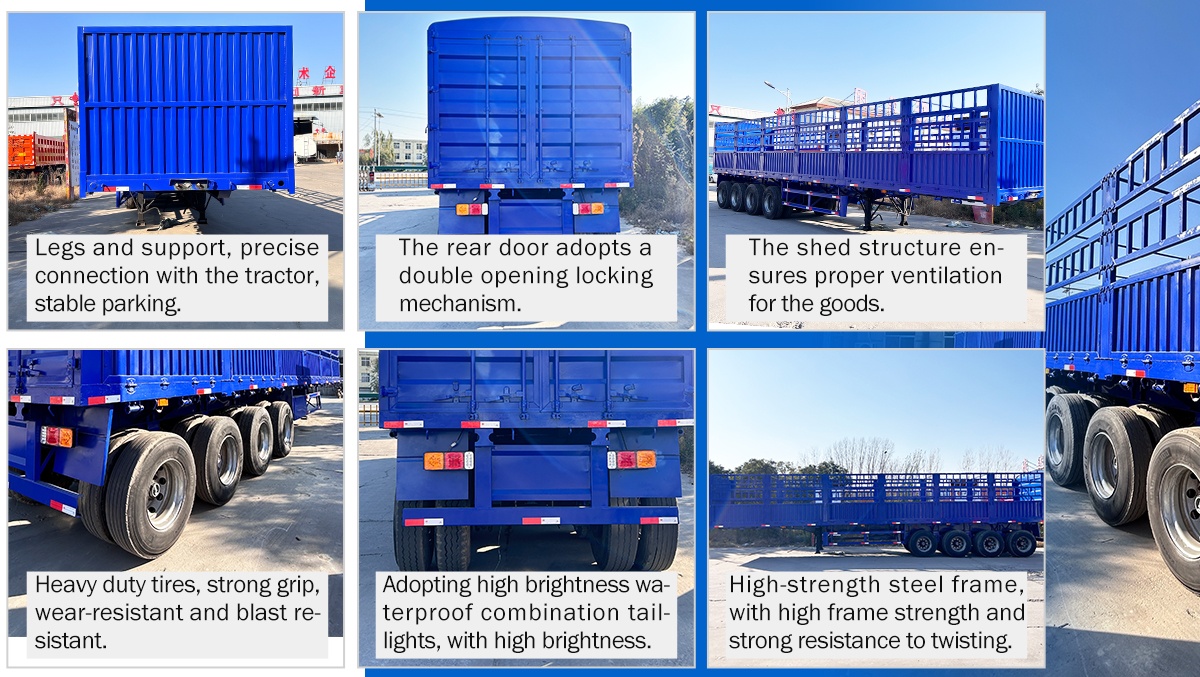

1. Superior Load Capacity and Compliance Advantages
Four-Axle Design: Higher load capacity than three-axle trailers (typically 60–100 tons), carrying 5–10 tons more per trip.
More Even Weight Distribution: The four axles distribute the load more evenly, better complying with weight limits in various regions and reducing the risk of overloading fines.
High-Strength Steel Frame: Robust and durable, resistant to deformation under long-term heavy loads.
2. Enhanced Driving Stability and Safety
Four-Axle Support: More stable handling at high speeds, under heavy loads, on curves, and on slippery roads, reducing the risk of rollover.
High-Quality Braking + ABS: Shorter and more controllable braking distance under heavy loads.
Side Panels/Grid Structure: Effectively prevents cargo from slipping or shifting, protecting both cargo and vehicle safety.
3. Highly efficient loading and unloading, flexible use
Open/removable sideboards: Suitable for multi-directional loading and unloading by forklifts, cranes, and manual labor.
Sideboard height is customizable/adjustable/removable, suitable for oversized and overweight cargo.
Good ventilation: Suitable for transporting fresh produce, agricultural products, and live poultry and livestock, reducing cargo damage.
Facilitates in-transit inspection, inventory, and ventilation.
Product Applications
Highly versatile (multi-purpose vehicle) Suitable for almost all general cargo, bulk cargo, agricultural products, and building materials:
Agriculture: Grains, feed, vegetables, fruits, livestock (good ventilation required)
Construction: Sand, bricks, steel bars, pipes, bagged cement
Industry: Machinery parts, packaged goods, equipment accessories
Logistics: Less-than-truckload (LTL), general merchandise, cartons, large daily necessities
Can be fitted with a container lock: Instantly transforms into a container skeleton vehicle, serving as both cargo hauling and container transport.
Company Introduction
Chengda Group Established in 2003,23 Years Manufacturing Experience. Exported to 80+ Countries.We provide high-quality products and have obtained CCC, BV, ISO, and WMI certifications, with cumulative export value reaching US$5 billion. We are a leading supplier in the industry, exporting over 3,000 trucks, trailers, and cars annually. The company is a professional manufacturer integrating production, R&D, and sales. We primarily manufacture tank trucks, cement bulk trucks, concrete mixer trucks, trailers, semi-trailers, tractor units, dump trucks, light trucks, construction machinery, and trailer accessories.
