3 Axle Side Wall Semi-Trailer 60T for Mining | Chengda

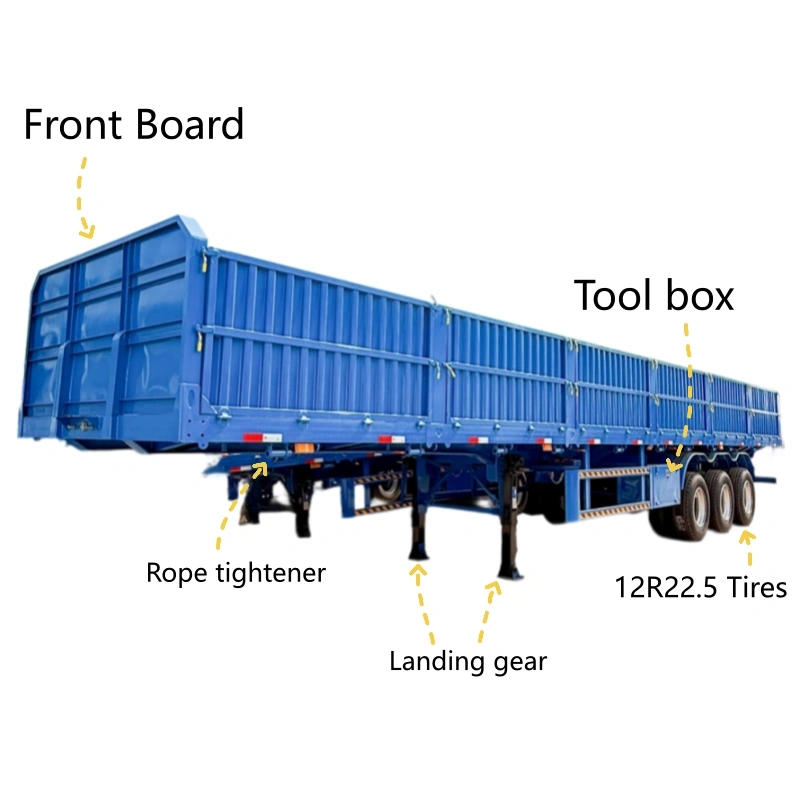

The 3 axle side wall semi-trailer has a 12500x2500x3260mm frame with 1000mm side walls, rated for 60T loads. It runs on 3 axles in 13T/16T FUWA, BPW or Chengda options, 12 units of 12.00R22.5 or 315/80R22.5 tires, mechanical suspension and a WABCO ABS dual-circuit braking system. Side wall height is adjustable from 0.6 to 2.0 meters, and 2, 3 or 4 axle configurations are available for mining, construction and heavy cargo hauling. Contact us for a quote.
Get a factory-direct price with full shipping cost to your port.
| Parameter | Value |
|---|---|
| General Information | |
| Dimension(mm) | 12500x2500x3260mm |
| Side Wall Height | 1000mm |
| Loading capacity(ton) | 60T |
| Sideboard Height Range | 0.6-2.0 meters |
| Axles & Suspension | |
| Axles | 3 axles, 13T/16T, FUWA / BPW / Chengda Brand |
| Axle Configuration Options | 2, 3 or 4 axles |
| Suspension | Mechanical suspension |
| Wheels & Tires | |
| Tire | 12 units, 12.00R22.5 or 315/80R22.5 |
| Rim | 9.00-22.5 or 9.75-22.5 |
| Braking System | |
| Braking System | WABCO ABS + dual-circuit braking system |
| Product Identification | |
| Price | 12000 USD |
| SKU | Chengda9404204 |
| GTIN | 6975766117979 |
| MPN | Chengda9404204 |
| Brand | Chengda |
| Since | 2014 |
Full spec sheet with dimensions and axle options on request.
Request Full Specification Sheet
See it from every angle — request more photos of your preferred configuration.
Need a specific steel grade or compartment layout? We build to your spec.
60T Loading Capacity | 1000mm Side Wall Height | 0.6-2.0m Sideboard Height Range |

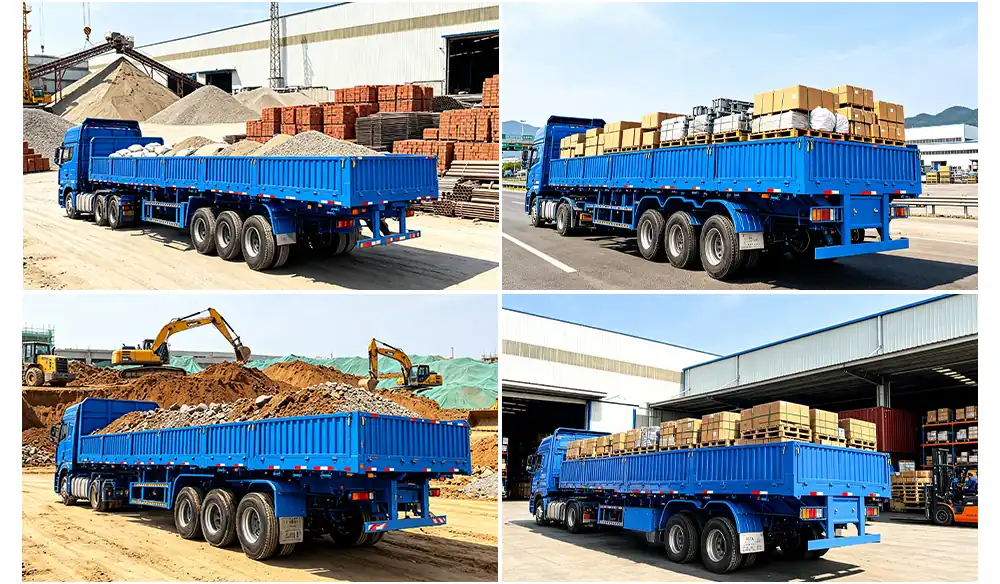

The 3 axle side wall semi-trailer is widely used in mining regions and construction projects, hauling construction materials, machinery, bagged cargo, livestock and agricultural products. Its fence-type structure with 1000mm side walls keeps bulk loads contained, while the sideboards can be lowered, disassembled or folded for fast loading and unloading on site. With a 60T loading capacity and a 12500x2500x3260mm body, it handles long-distance heavy-load transport on highways, rural roads and rugged mountain roads.
Sideboard height can be customized from 0.6 to 2.0 meters, and the trailer can be configured with 2, 3 or 4 axles to match different transport needs. The main beam is made of high-strength steel for impact resistance, and the patterned non-slip floor with multiple tie-down points keeps cargo stable during transit. A WABCO ABS + dual-circuit braking system supports stable braking under full load, and the anti-corrosion coating extends service life in humid coastal and rainy conditions.
Tell us your cargo and route — we recommend the right capacity and compartments.

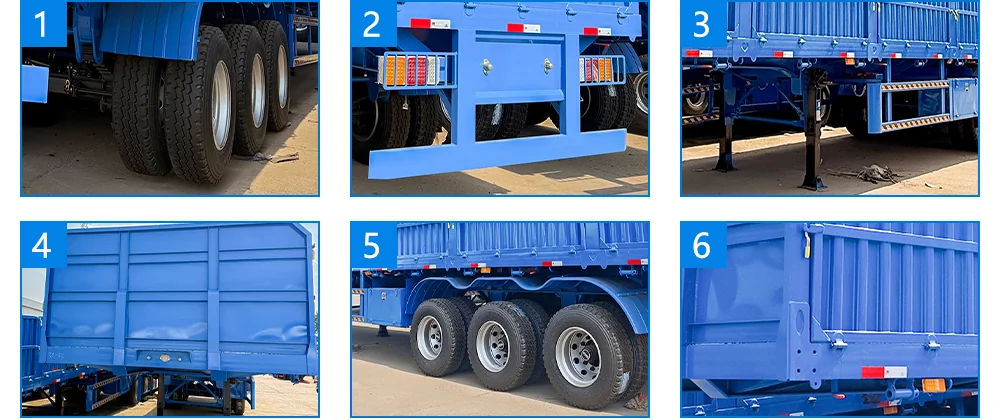

60T Loading Capacity on a 3 Axle Fence-Type Chassis The trailer measures 12500x2500x3260mm and carries up to 60T, with 3 axles rated 13T/16T in FUWA, BPW or Chengda brand for heavy cargo hauling. | Adjustable Side Walls from 0.6 to 2.0 Meters The 1000mm side walls can be lowered, removed or folded, and the sideboard height range of 0.6-2.0 meters is customizable to suit bulk, bagged or oversized freight. |
High-Strength Steel Main Beam for Heavy Haul The main beam is built from high-strength steel for strong impact resistance, and the side rails resist deformation to keep cargo secure on long-distance heavy-load routes. | WABCO ABS + Dual-Circuit Braking System WABCO ABS with a dual-circuit braking system delivers stable braking under full load, and mechanical suspension handles highways, rural roads and rugged mountain roads. |
Patterned Non-Slip Floor with Multiple Tie-Down Points A patterned non-slip floor stops cargo from sliding in transit, while multiple tie-down points let you secure loads with ropes or nets against tipping and scattering. | 12 Tires and Configurable 2, 3 or 4 Axle Options Runs 12 units of 12.00R22.5 or 315/80R22.5 tires on 9.00-22.5 or 9.75-22.5 rims, with 2, 3 or 4 axle configurations available to match your load-bearing needs. |
Compare features and prices — no obligation.

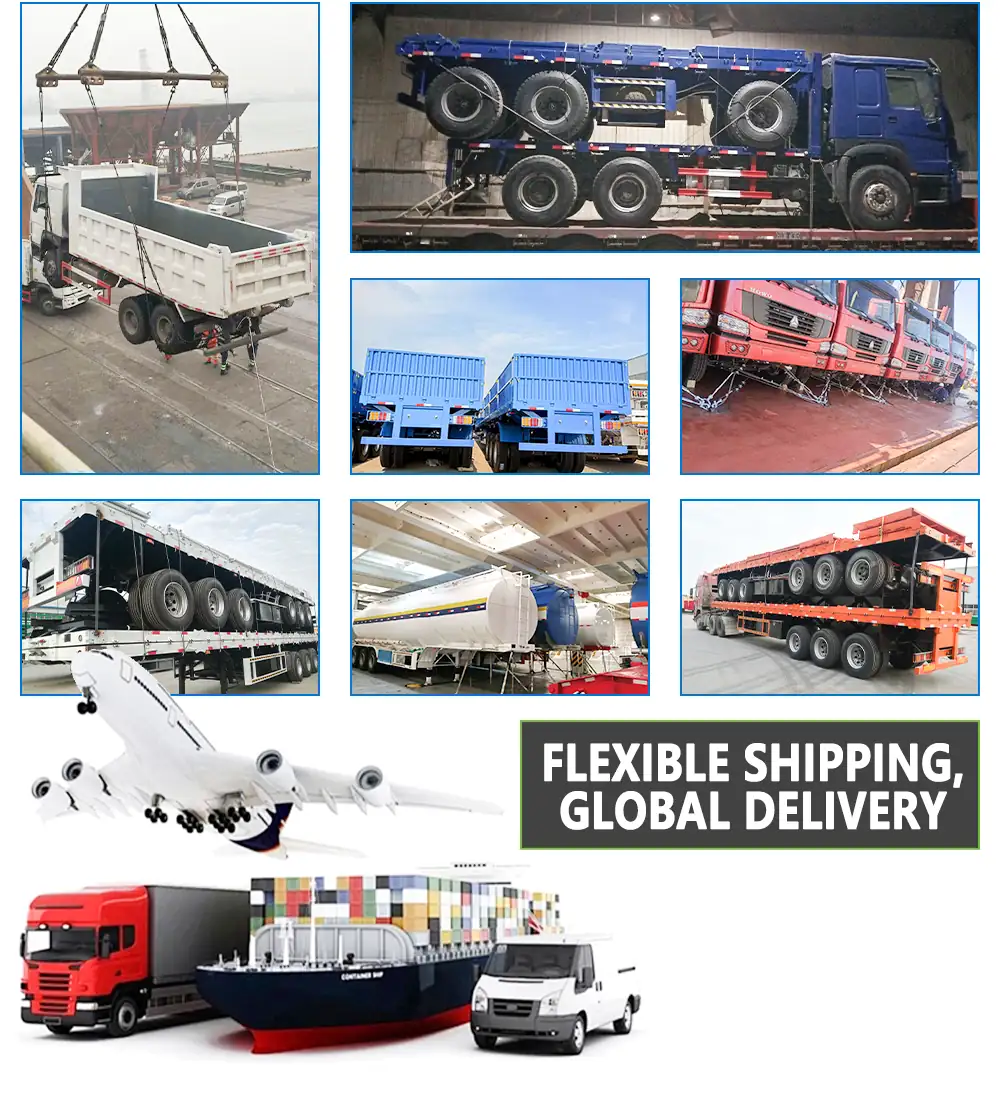

The 3 axle side wall semi-trailer is shipped worldwide by sea, with container transportation, bulk carriers or Ro-Ro ships available depending on your destination port and order volume. Each unit is waxed and covered with waterproof cloth before loading to prevent erosion from seawater and rainwater during the voyage. Standard production takes 15-20 working days, while custom configurations such as sideboard height or axle setup require 25-30 days. Trade terms including FOB, CFR, CIF and EXW are all supported.
Get exact freight cost to your port within 24 hours.
Shandong Chengda is a professional semi-trailer manufacturer established in 2003, with 23 years of manufacturing experience and exports to 80+ countries. We integrate production, research and development, and sales, supplying flatbed, low-bed, skeleton, tanker, dump and side wall semi-trailers built to CCC, BV, ISO and WMI standards. Our products serve customers across Africa, Central Asia, the Middle East, South America and Southeast Asia, supported by long-term cooperation with major OEMs and a mature after-sales system.
Work directly with the manufacturer — no middlemen.
We have welcomed customers from Africa, Southeast Asia, the Middle East, South America and other regions to our factory, where they inspect the production line of the 3 axle side wall semi-trailer and review the welding, sideboard and braking system details on site. Many of these visitors confirm their orders after seeing the 60T loading capacity and 0.6-2.0 meter sideboard height range in person, and go on to build long-term cooperation with us.
Join buyers from 80+ countries who have visited our factory and closed deals.
Q1: What is the loading capacity of this side wall semi-trailer? It is rated at 60T, with 3 axles of 13T/16T in FUWA, BPW or Chengda brand. The main beam uses high-strength steel for heavy-load hauling. |
Q2: What is the size of the trailer and its side walls? The trailer measures 12500x2500x3260mm with 1000mm side walls. Sideboard height can be customized from 0.6 to 2.0 meters to suit your cargo. |
Q3: Can I change the axle configuration or suspension? Yes. You can choose 2, 3 or 4 axles, and mechanical or air suspension to match highways, rural roads or rugged mountain roads. |
Q4: How do the side walls help with loading? The sideboards can be disassembled or folded down, so bulk, bagged, livestock and building materials load and unload quickly from the side. |
Q5: What braking system and tires does it use? It comes with a WABCO ABS plus dual-circuit braking system. Tires are 12 units of 12.00R22.5 or 315/80R22.5, with 9.00-22.5 or 9.75-22.5 rims. |
Q6: How long is production and delivery? Standard production takes 15-20 working days, custom configurations 25-30 days. We ship by container, bulk carrier or Ro-Ro, with wax and waterproof cloth protection. |
Still have questions? Ask us directly.
