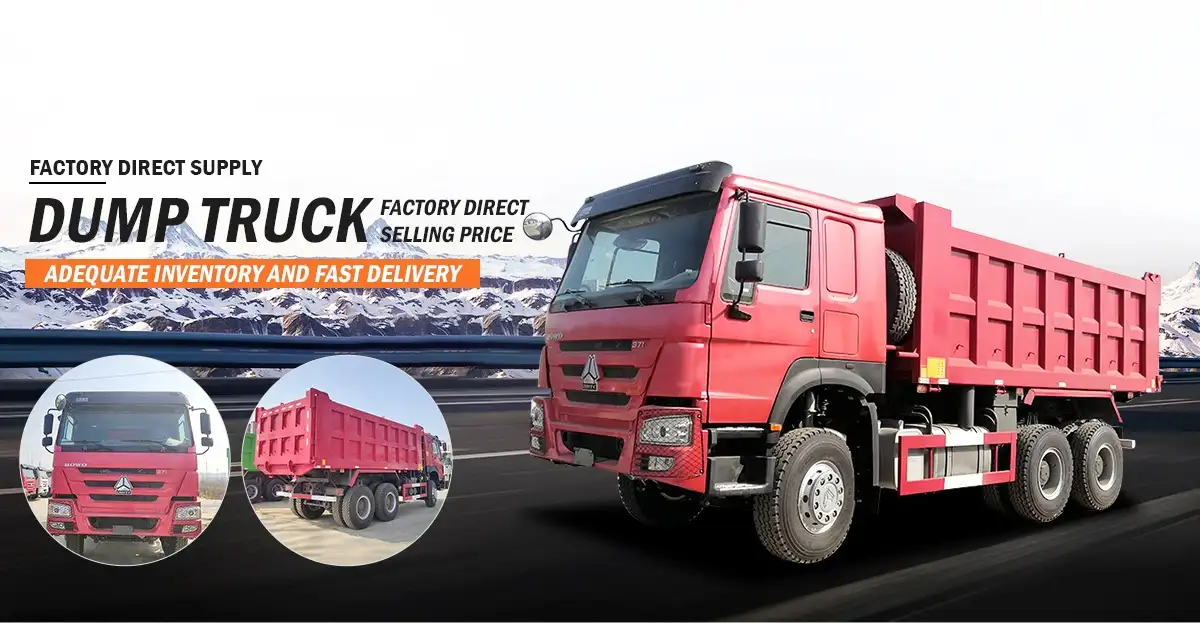

Sinotruck Howo Dump Truck Hydraulic For Construction Mining
Use: Mining hauling, road building, earthwork, sand stone transportation
Configuration: Hydraulic tipping system, heavy load chassis, high power diesel power

The core value of dump trucks lies in automatic unloading, efficient operation, cost reduction and efficiency improvement. They are mainly targeted at heavy-load scenarios such as construction, mining, municipal services, and agriculture.

Advantages of Sinotruk dump trucks are:
1.Superb off-road and driving performance
2. Adaptability to Extreme Weather Conditions
3. Durability comes first, with an extremely low failure rate.
4. superior carrying capacity
5. Exceptionally high cost-effectiveness
6. Specialized capabilities in mining and resource extraction
7. Adaptability in infrastructure construction

Ready to enhance your transport efficiency?
Technical Specifications
| Parameter | Specification |
|---|---|
| Overall Dimension | 8800×2550×3450 mm |
| Wheelbase | 4100+1300 mm |
| Drive Mode | 6×4 rear wheel drive |
| Wheel Number | 10 wheels |
| Curb Weight | 10500 kg |
| Gross Vehicle Weight | 35000 kg |
| Rated Payload | 24500 kg |
| Cargo Box Inner Size | 6200×2300×1450 mm |
| Cargo Box Volume | 20.8 m³ |
| Cargo Box Material | High strength manganese steel plate |
| Engine Type | Heavy duty diesel engine |
| Displacement | 9.7 L |
| Rated Power | 220 kW / 299 HP |
| Maximum Torque | 1280 N·m |
| Emission Standard | Euro 2 / Euro 3 |
| Transmission | 10-speed manual gearbox |
| Maximum Driving Speed | 70 km/h |
| Maximum Climbing Gradient | 25% |
| Hydraulic System | Full hydraulic self-tipping system |
| Tire Specification | 12.00R20 heavy-duty tire |
| Braking Type | Air pressure braking system |
| Fuel Tank Volume | 350 L |
| Cab Structure | Single row shock absorption cab |

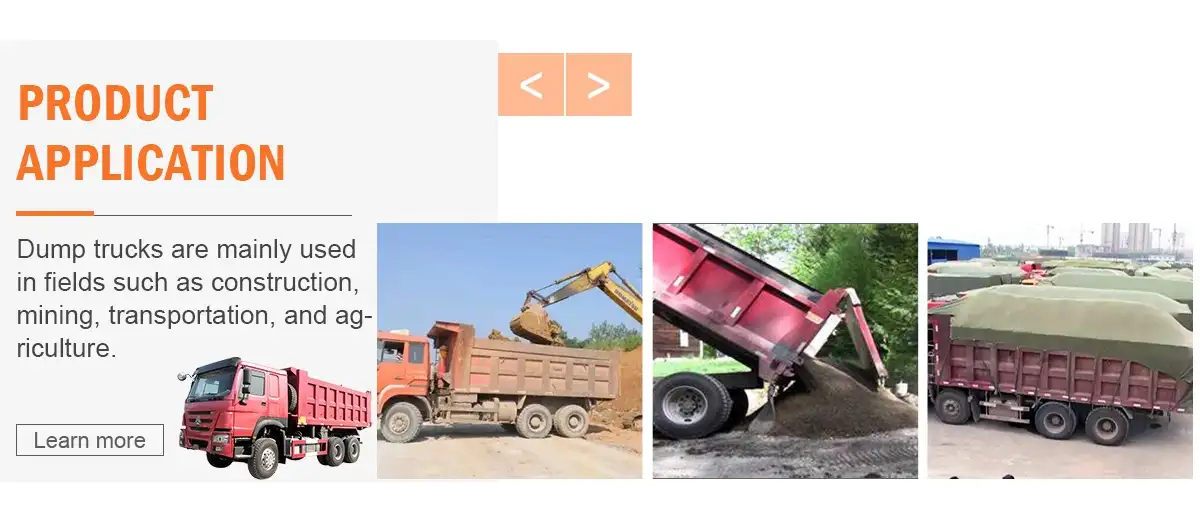

Product Application
Construction site: Large volume, rapid unloading, flexible scheduling
Mining excavation: Heavy load capacity, wear-resistant, low failure rate, unmanned operation possible
Municipal engineering: Compliant emissions, tarp covering, convenient urban traffic
Agricultural transportation: Lightweight, economical and fuel-efficient, adaptable to rural road conditions
Construction waste transportation: Sealed dust prevention, GPS monitoring, compliant operation

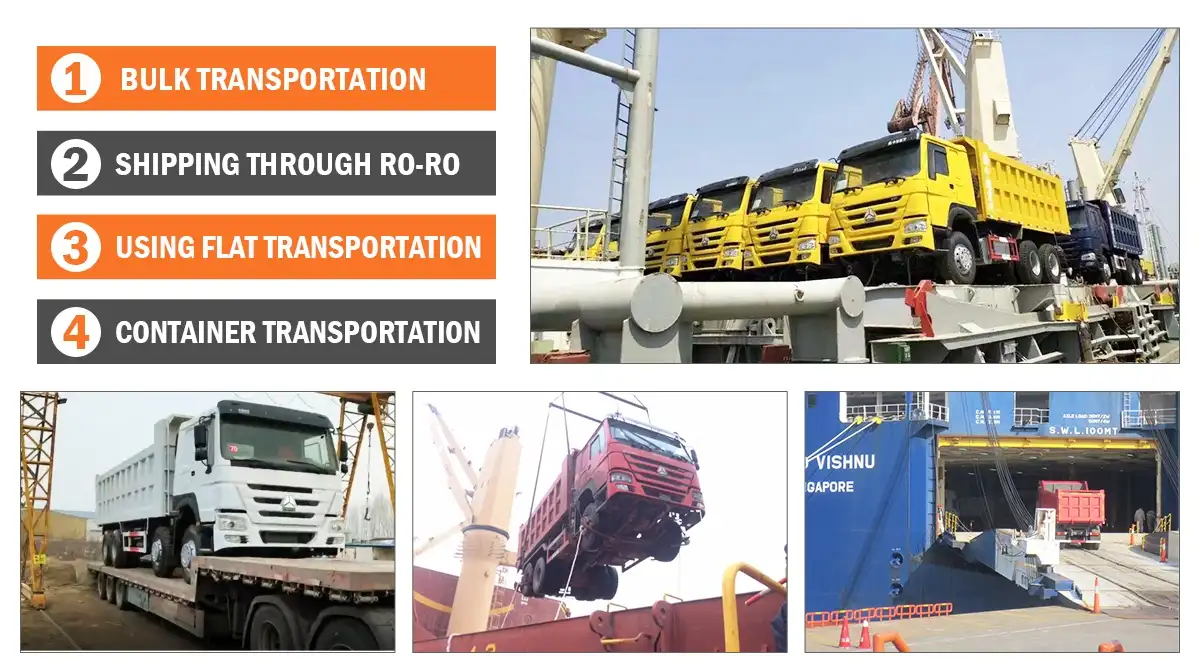

Product transportation method
Waxing,Shipped By Bulk Carrier Or By Container,According To The Size.
1.By Bulk Shipment,The Truck Is Placed On The Deck.
2.By Ro Ro Shipment,The Truck Is Placed In The Cabin.
3.By Flat Rack Container Shipment.

Free quote & shipping solution now.

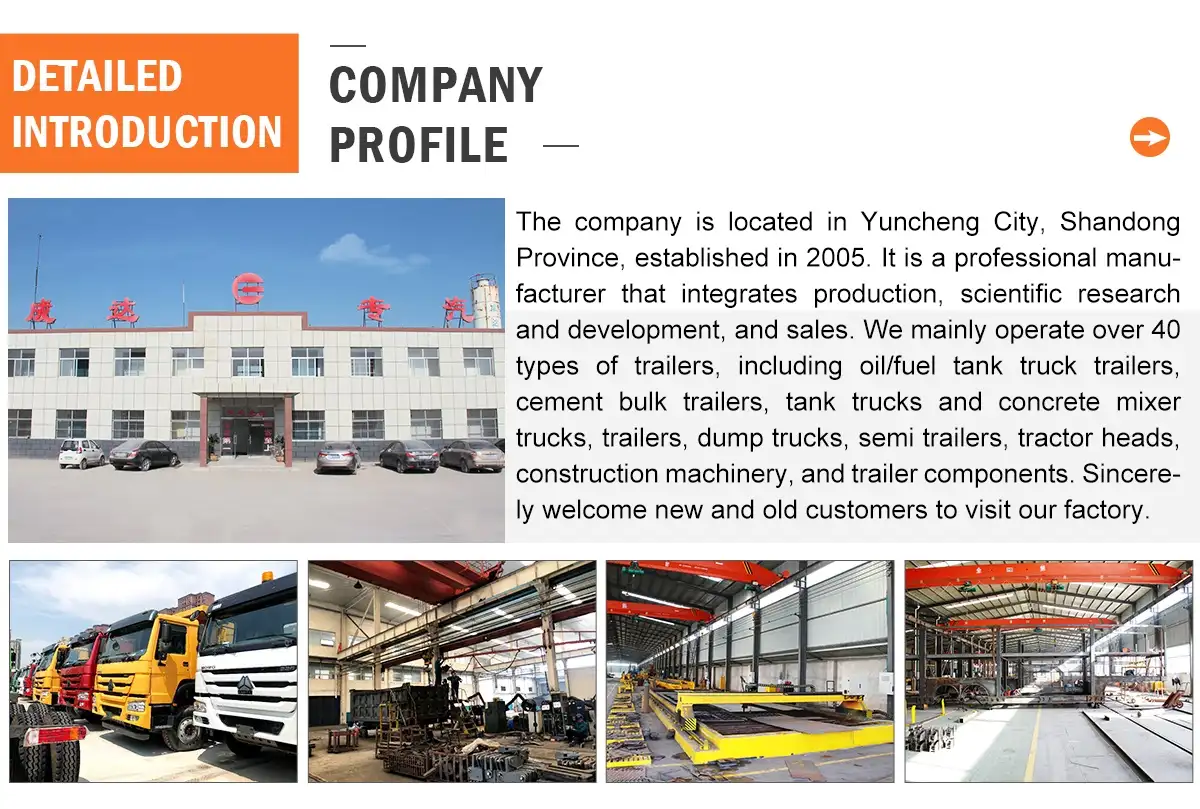

Company Profile
Established in 2005,20+ Years Manufacturing Experience · Exported to 80+ Countries. our company is a professional manufacturer integrating the production, scientific research & development and sales.

Customer visit
Our trucks are popular in Africa,South Africa,The Middle East,South America,Southeast Asia.We have enough experience to solve any problems you may encounter.More than 8,000 trucks and semi-trailers are sold.
