Howo 8X4 50 Ton Heavy-duty Dump Truck

Howo 8X4 50 Ton Heavy-duty Dump Truck

Howo 8X4 50 Ton Heavy-duty Dump Truck

The Howo 8X4 50 Ton Heavy-duty Dump Truck is an ultra-heavy engineering vehicle tailored for high-load mining and aggregate transportation.

Dimensions: Oversized heavy-duty vehicle body for massive cargo haulage

Use: Mining exploitation, sand stone delivery, large-scale earthwork project

Configuration: 8X4 drive layout, 50-ton heavy load grade, hydraulic tipping device

Product Details

Howo 8X4 50 Ton Heavy-duty Dump Truck is engineered for demanding environments including mining, construction, and large-scale earthmoving operations. Built with a high-tensile steel body and powered by a turbocharged diesel engine, this tipper truck delivers exceptional load capacity, durability, and fuel efficiency.

8X4自卸(详情页)_01.jpg?x-oss-process=style/yasuo

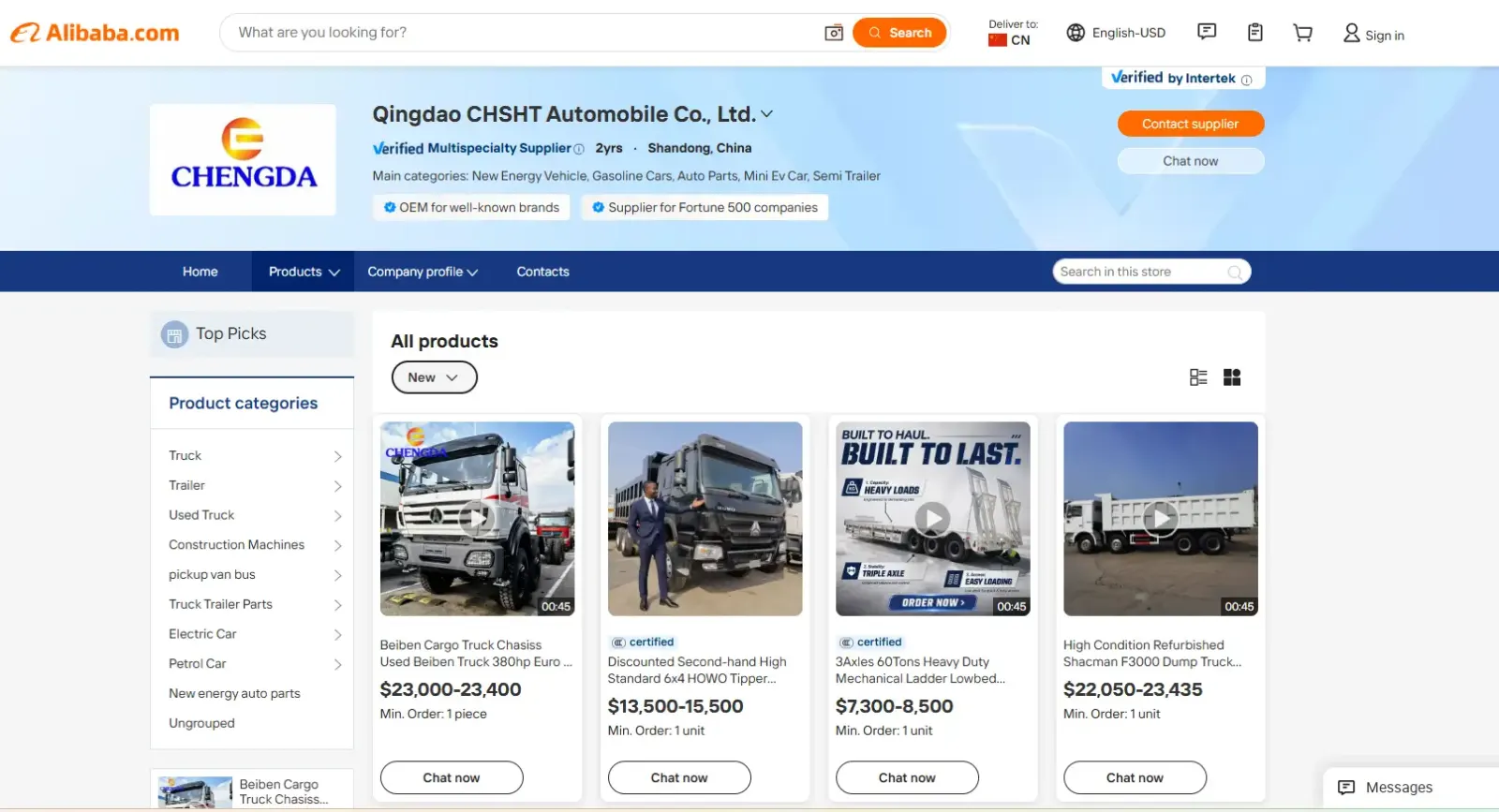

Qingdao CHSHT Automobile Co.,Ltd.

Product details

High Load Capacity: Available in 20T / 30T / 40T configurations to meet various project demands.

Powerful Engine: Equipped with a 336HP–420HP turbocharged diesel engine (Weichai / Yuchai / Cummins optional), meeting Euro II / Euro III emission standards.

Heavy-Duty Steel Body: Q345 high-strength steel dump body with automatic hydraulic tipping system (front-lift or three-way discharge available).

Superior Traction: 6×4 or 8×4 drive axle configuration for maximum traction on rugged terrain.

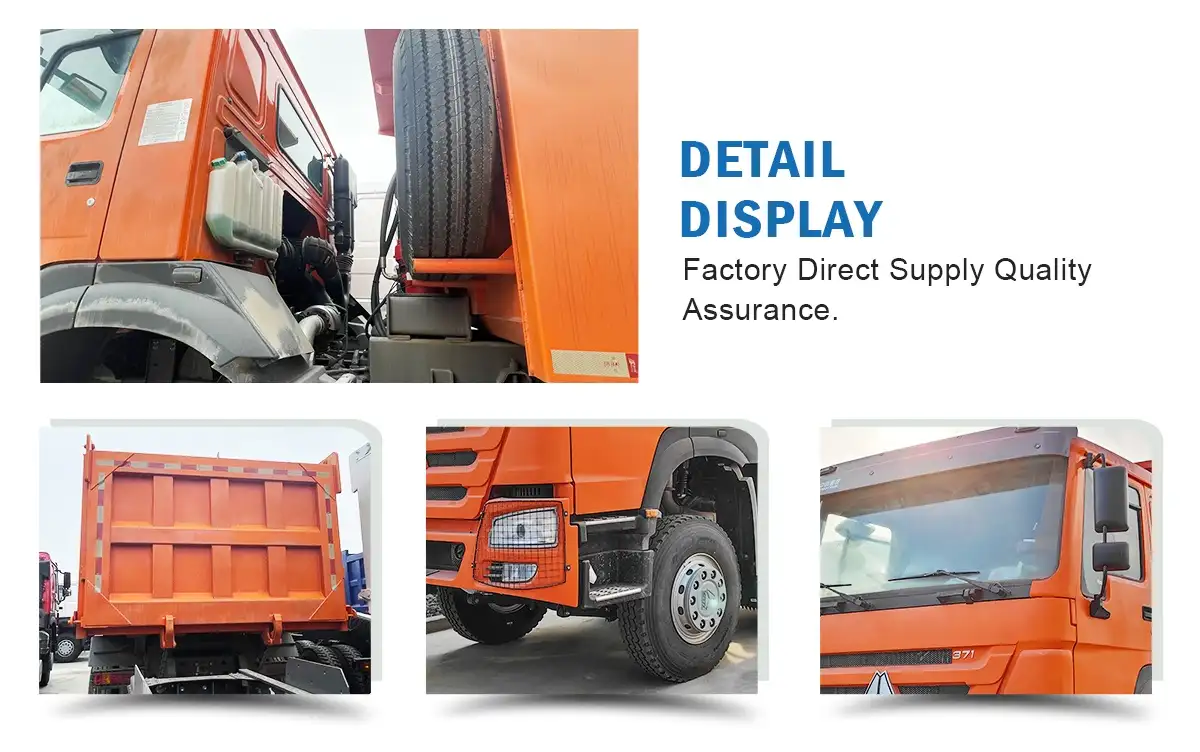

8X4自卸(详情页)_05.jpg?x-oss-process=style/yasuo


Ready to enhance your transport efficiency?


Get a Free Quote Now


Parameters and Specifications

Technical ParametersEngineering Specifications

Drive Wheel

8x4 (12 Wheels + 1 Spare Tire)

Chassis Model

ZZ3317N3867W (Reinforced Heavy-duty Chassis)

Engine Model & Brand

WD615.47 / WP12.430E22 (Sinotruk / Weichai, Euro 2)

Max Output

430 HP (Option: 371 HP / 400 HP)

Transmission

HW19710 (10 Forward Speed & 2 Reverse, Manual)

Steering System

ZF8118 Hydraulic Steering with Power Assistance

Front Axle

HF9 (9,000 kg capacity x 2, Heavy-duty Drum Brake)

Rear/Drive Axle

HC16 (16,000 kg Heavy-duty Reduction Axle x 2, Ratio: 5.73 / 16-ton dual rear axle)

Suspension System

Reinforced Multi-leaf Springs (Front 11, Rear 12 leaves)

Tire Specification

12.00R20 (Radial Steel Tire, 18PR / 12.00R20)

Fuel Tank Capacity

300L / 400L (Aluminum Alloy Tank with Lock)

Cargo Box Capacity

25 - 30 $m^3$ (Standard Loading Cubage)

Cargo Box Thickness

Bottom: 8mm, Side: 6mm (High-tensile Steel Q345)

Lifting Mechanism

HYVA Front Lifting Hydraulic Cylinder

Curb Weight

Approx. 15,300 kg (15.3 Tons)

Gross Vehicle Weight (GVW)

Max Design Capacity: 50,000 kg (50 Tons Total Payload)

Cab Type

HW76 Extended Cab (One Bunk, Air Conditioner, Safety Belt)

Overall Dimensions

Approx.10600mm*2550mm*3450mm

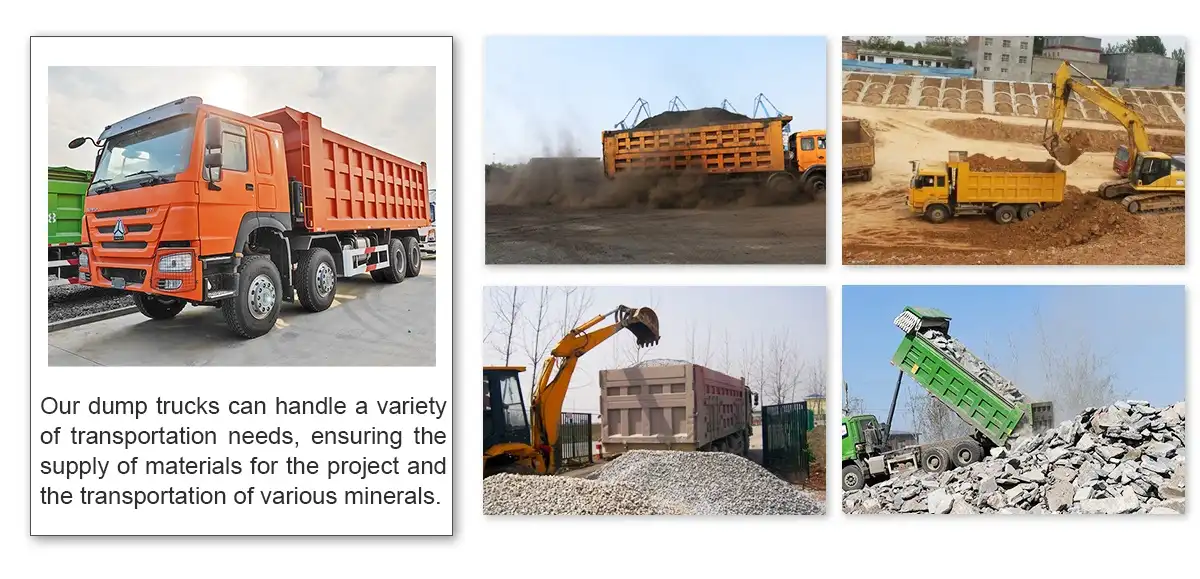

Applications

Mining & Quarrying

Road & Highway Construction

Dam & Infrastructure Projects

Port & Logistics Operations

Earthmoving & Land Development

8X4自卸(详情页)_22.jpg?x-oss-process=style/yasuo

Product transportation
By bulk:The cheapest way.
By RoRo:The safest way.
By flat rack container.

8X4自卸(详情页)_08.jpg?x-oss-process=style/yasuo


Leave your contact, get exclusive wholesale price now!


Get a Free Quote Now



Company Profile

Established in 2005,20+ Years Manufacturing Experience · Exported to 80+ Countries. We supply products with high quality and acquire CCC certification and BV, ISO, WMI certification, with 50 million dollars sales annually and revenue almost 600 million RMB. We are a leading provider in this industry.

8X4自卸(详情页)_14.jpg?x-oss-process=style/yasuo

Customer visit

Our Owing to the mature after-sales system, we can meet different needs of customers.Our partners visit our factories and offices, thank you for your trust.

8X4自卸(详情页)_18.jpg?x-oss-process=style/yasuo
