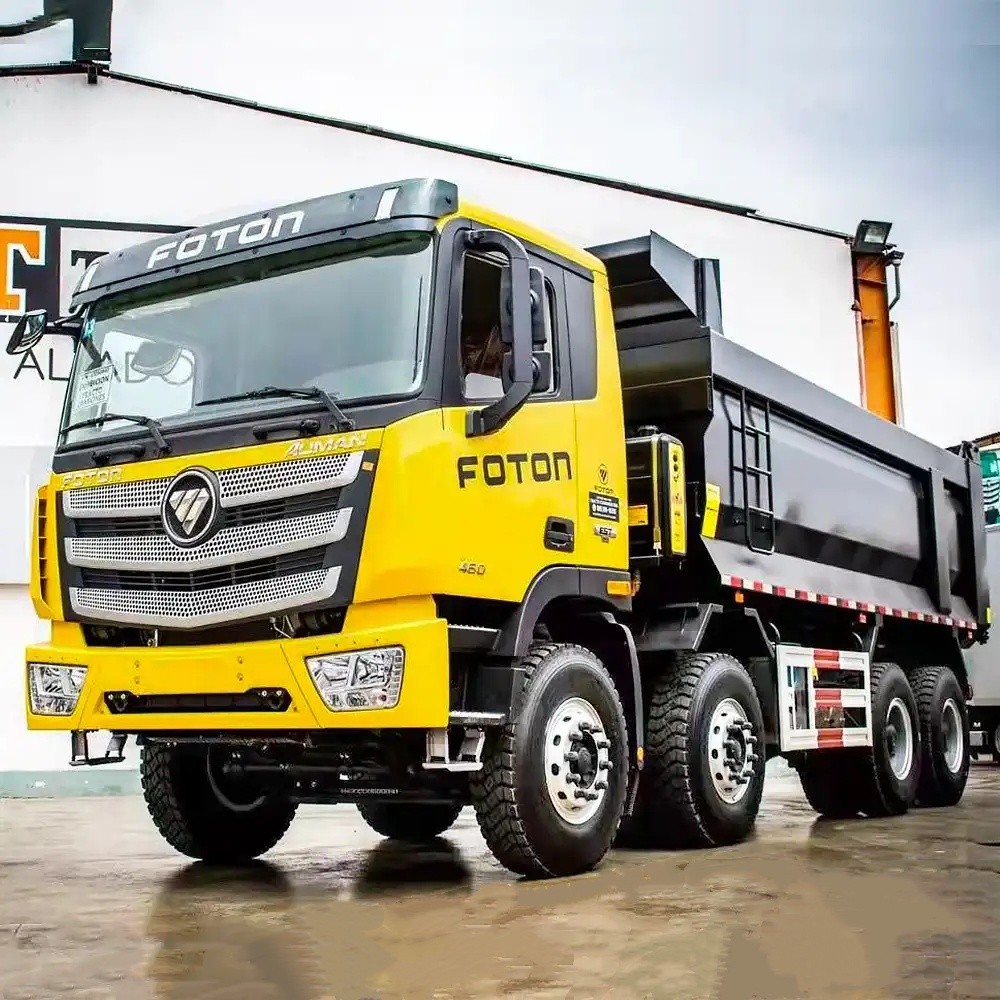

The Foton EST 460HP 8x4 Cummins Diesel Euro 5 Dump Truck is a heavy-duty haulage vehicle engineered for reliability and efficiency. Powered by a robust Cummins diesel engine, it delivers exceptional load-bearing capacity and adapts to harsh working conditions, while complying with Euro 5 emission standards for global market access. Ideal for construction, mining and municipal projects, it ensures stable operation and cost-effective logistics.

Technical Specifications Reference

Technical Parameters	Engineering Specifications
Drive Wheel	8x4 (12 Wheels + 1 Spare Tire)
Chassis Platform	Foton Auman EST Heavy-duty Series
Engine Brand & Model	ISG12E5-460 (Cummins Series, Euro 3 / Euro 5 )
Max Horsepower	460 HP (Max Torque: 2200 N.m)
Transmission	Fast 12JSDX240TA (12 Forward Speed, Manual)
Front Axle	9T Double Front Axles with Drum Brake
Rear Axle (Drive Axle)	16T Hub Reduction Axle, Ratio: 5.26
Tire Specification	12.00R20 (Radial Steel Wire Tires, 18PR / 12.00R20)
Brake System	Dual Circuit Air Brake, ABS Equipped
Cargo Box Volume	25 - 28 $m^3$ (Heavy-duty Loading Area)
Cargo Box Material	High Tensile Steel Q355, Bottom: 8mm, Side: 6mm
Lifting System	Front Hydraulic Lifting Mechanism
Fuel Tank	350L Aluminum Alloy Tank with Lock Cap
Overall Dimensions	Approx. 10,350mm2,550mm3,450mm

Core features

The power system is powerful.

Equipped with Cummins/Yuchai engines

Power output ranges from 340HP to 460HP, meeting the requirements of heavy-duty operations

Maximum torque is 2100 N·m to 2300 N·m, featuring high torque at low RPM, fuel-efficient and durable

Supports multiple emission standards such as Euro 3, Euro 5, and Euro 6, adapting to global market regulations

Bulk order enjoy big preferential

Get a Free Quote Now

Super strong load-bearing capacity

8×4 four-wheel drive design, legal load capacity can reach 31T to 50T

Front double axle 2×9T + rear double axle 2×16T, GVW maximum 49T

Truck volume 20㎥ to 30㎥ customizable, suitable for large-scale earthwork operations

Compared with 6×4 models, single trip transportation capacity increases by 30% to 40%, and operational efficiency is higher

细节.jpg?x-oss-process=style/yasuo

Main application scenarios

Southeast Asia: Coal mines, nickel mines, infrastructure, ports

Africa: Mines, road construction, agriculture

Middle East: Oil and gas engineering, urban construction, quarrying

应用.jpg?x-oss-process=style/yasuo

Ready to enhance your transport efficiency?

Get a Free Quote Now

Chengda Group Established in 2003,23 Years Manufacturing Experience · Exported to 80+ Countries. Our Trucks Are Sold To Africa, South Africa, Central Asia, The Middle East, South America, Southeast Asia, Asia, Eastern Europe ,Latin America, And Other Regions.

公司.jpg?x-oss-process=style/yasuo

Our company sincerely invites customers from home and abroad to visit our factory for on-site inspections, tour our semi-trailer production line, welding process, and testing equipment, and closely examine raw materials, semi-finished products, and finished products. Customers will gain a direct understanding of the product manufacturing process and quality. Our professional technicians and foreign trade team will accompany you, providing one-on-one answers to questions regarding product configuration, customization solutions, pricing, and delivery time, allowing you to experience our Dump Truck strength firsthand.

来访.jpg?x-oss-process=style/yasuo
