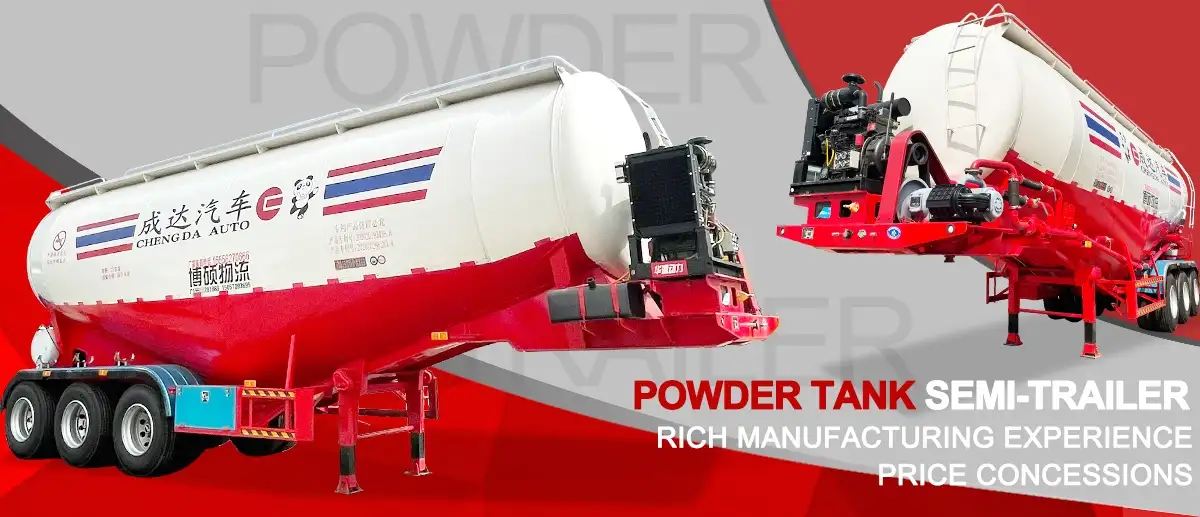

The 3 Axles Bulk Cement Trailer, with its high-strength tank as its core and a professional pneumatic conveying system, serves a wide range of core scenarios, including direct delivery to cement plants, distribution to commercial concrete mixing plants, material supply to construction sites, and transportation of industrial powder materials. It is an indispensable professional transportation equipment in the building materials supply chain.
Product Details
High-Strength Tank Structure:
Tank body is manufactured using high-strength carbon steel (Q345/Q370).
* Uniform wall thickness, withstands internal air pressure without deformation.
* Longitudinal reinforcing ribs + circumferential reinforcing rings ensure strong structural rigidity.
* Fully automated welding process ensures stable and reliable weld quality.
* Tank design pressure bearing capacity ≥ 0.2MPa, with ample safety margin.
Optimized Tank Shape:
* Inclined conical bottom design allows materials to flow naturally to the discharge port.
* Discharge residue rate < 0.1%, minimizing cement waste.
* Multiple compartments available for simultaneous transport of different types of cement/powder.
* Elliptical cross-section lowers the center of gravity, improving driving stability.
* Streamlined shape design reduces wind resistance and saves fuel.

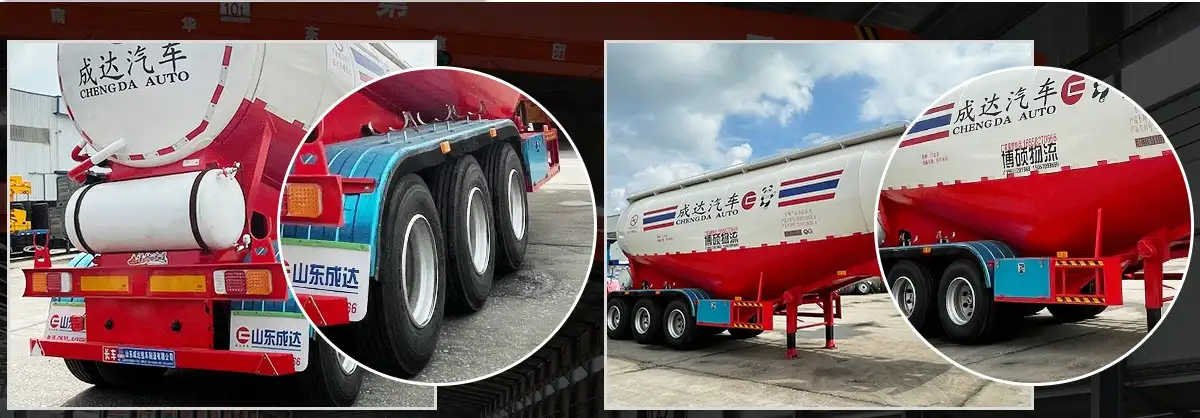

Three-Axle Load Advantage:
* Three-axle design ensures even axle load distribution, complying with road regulations in various countries.
* Total weight can reach [amount missing]. 40–50 tons (with towing head)
* Lifting bridge (axle lifting) design, lifts when unloaded to reduce tire wear
* Compatible with axle load restrictions in different countries, compliant with export markets
Tank safety devices:
Safety valve: Automatically releases pressure when the tank exceeds the limit to prevent explosion
Pressure gauge: Real-time display of tank pressure, allowing operator monitoring
Anti-static grounding chain: Eliminates static electricity generated during powder transportation
Explosion-proof lock on manhole cover: Prevents accidental opening of the manhole when pressurized inside the tank
Rainproof cap: Prevents rainwater from entering the feed inlet, protecting cement quality
Want to know which model is right for you?
Get exclusive factory price！
Technical Specifications
| Item | Parameter |
|---|
| Product Name | 3 Axles 60 Tons 40Ft Carrier Dry Bulk Cement Semi Trailer |
| Overall Size | 40Ft standard size (12200mm×2500mm×3600mm), customizable |
| Rated Load | 60 Ton (60000kg) |
| Axle Quantity | 3 standard heavy-duty axles |
| Tank Material | Q345 high strength anti-corrosion steel |
| Tank Thickness | 5mm main body, 6mm reinforced part |
| Unloading Mode | Pneumatic air discharge |
| Working Pressure | 0.2 MPa |
| Tire Specification | 12R22.5 heavy-duty tire |
| Tire Quantity | 12 pcs |
| Suspension System | Mechanical leaf spring suspension |
| Brake System | Dual-line pneumatic brake + ABS |
| Kingpin | 50mm / 90mm optional |
| Paint Treatment | Sandblasting + Anti-rust primer + Wear-resistant topcoat |
| Curb Weight | About 9200kg |
| Applicable Materials | Cement, fly ash, lime powder, mineral powder, dry bulk powder |
| Optional Parts | Air compressor, manhole, safety ladder, static elimination device |

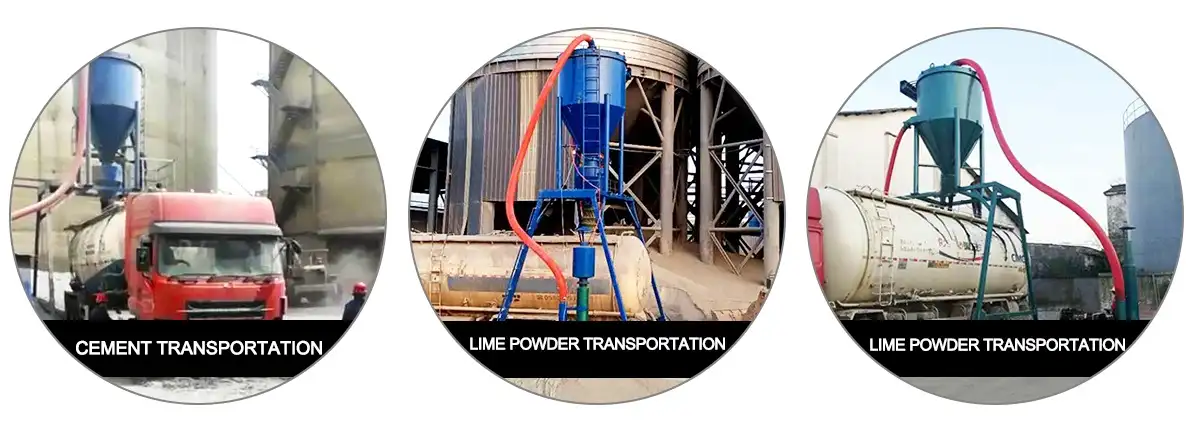

Application Scenarios
Direct delivery to cement plants: Large capacity, rapid unloading, high turnover rate
Commercial concrete mixing plants: Precise unloading, multi-variety silos, ERP integration
Large construction sites: Continuous and stable supply, convenient on-site unloading
Port bulk cargo transshipment: Large capacity, salt spray corrosion resistant, rapid turnover
Industrial powder transportation: Multi-material tanks, sealed and pollution-proof, compliant certifications
African/Middle Eastern infrastructure: High temperature adaptability, durability, cost-effectiveness, readily available spare parts
Long-haul transportation: Ultra-large capacity, fuel efficiency, driver comfort
