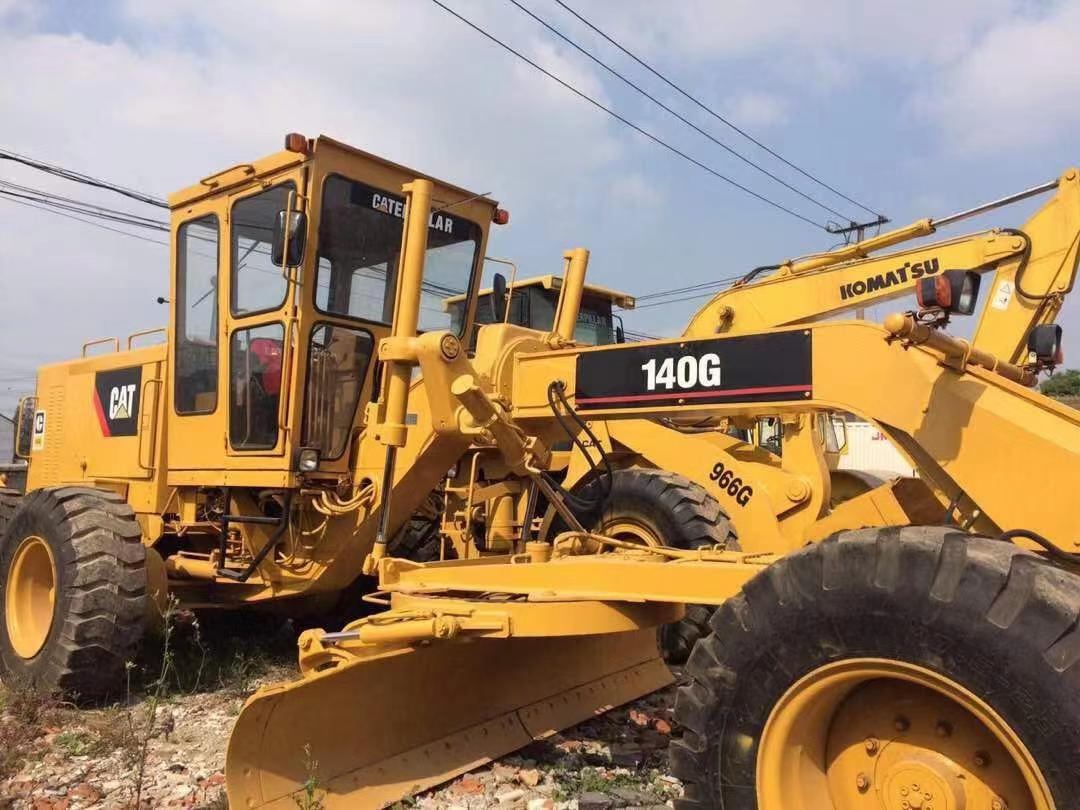

The Caterpillar 140G grader is the most classic and best-selling medium-sized grader from CAT, a global leader in construction machinery. It is known for its excellent leveling precision, powerful and reliable engine, and unparalleled durability, and is the global industry standard model for road construction, mine maintenance, and airport construction.
Caterpillar 3306 Engine:
Equipped with a CAT 3306 inline six-cylinder turbocharged diesel engine
Rated power: 138kW (185HP) @ 2200rpm
Maximum torque: 814N·m, high torque output at low speeds
Engine proven globally for decades, extremely reliable
Compatible with high-sulfur diesel (S500/S1000), suitable for global fuel types
Engine design life exceeds 15,000 hours
Powerful power output characteristics:
Large displacement engine, sufficient torque output at low speeds
Strong climbing ability, easily handling heavy-duty operations under full load
Turbocharged design, minimal power loss at high altitudes
Large engine cooling system, preventing overheating during prolonged operation in high-temperature environments
Extremely reliable fuel system, highly adaptable to low-quality fuels

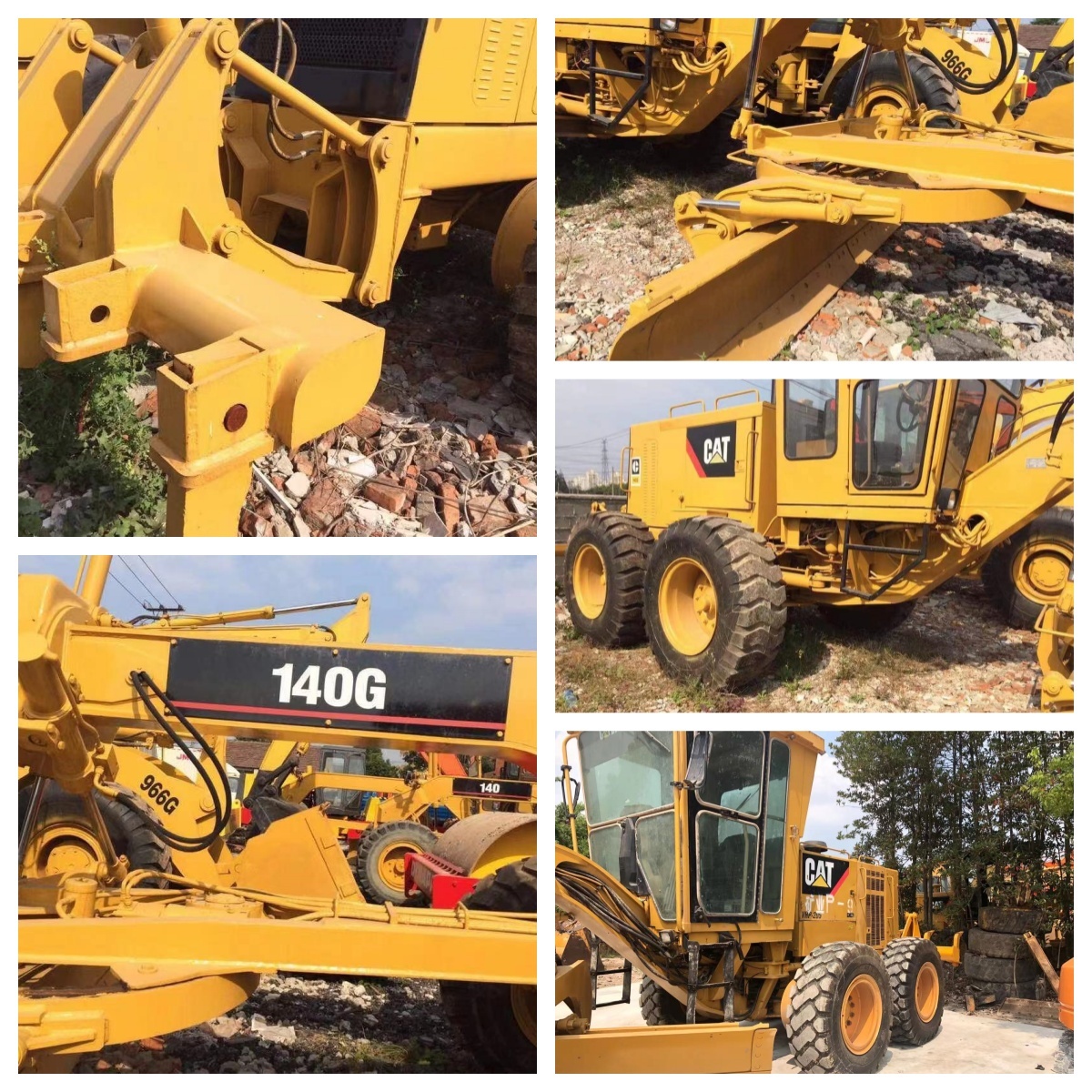

High-precision scraper system:
Standard scraper width: 3,658mm (12 feet)
Scraper lateral movement ±610mm, maximizing coverage width
Scraper tilt angle adjustment range ±90°, multi-angle leveling
Scraper pitch angle adjustment to adapt to different soil cutting needs
Scraper lifting height 420mm, strong obstacle-crossing ability
Scraper cutting depth 720mm, deep digging and leveling completed in one step
Scraper material and durability:
Scraper is made of high-strength wear-resistant alloy steel, with a long service life
Scraper cutting edge can be replaced individually, low maintenance cost
Reinforced blade design at the scraper end, no deformation during edge cutting
Thickened scraper back plate, no bending under heavy impact
Overall heat treatment of the scraper, uniform hardness and consistent wear resistance
| Application Scenarios | Key Selling Points |
| Highway Foundation | GPS precision leveling, high efficiency, and meeting accuracy standards |
| Mining Road Maintenance | High durability, heavy-duty scraping, all-weather operation |
| Airport Runway Construction | Laser precision leveling, extremely high precision, and compliant acceptance |
| Municipal Road Construction | Flexible and mobile, precision leveling, and noise compliance |
| Farmland Irrigation and Land Preparation | Large-area high efficiency, slope control, and labor saving |
| Snow Removal Operations | Wide scraper blades, high snow pushing efficiency, and all-wheel drive capability |
| Landfill Sites | Corrosion-resistant, resistant to harsh environments, and effectively compacted and leveled |
| Port Yards | Corrosion-resistant, all-weather, and high-intensity continuous operation |
Chengda Group Established in 2003,23 Years Manufacturing Experience · Exported to 80+ Countries.Leveraging high-standard machinery and automated equipment, a strong R&D team, and an elite sales team, we have established long-term cooperative relationships with many world-renowned companies such as China National Heavy Duty Truck Group, Shaanxi Automobile Group, FAW Group, Dongfeng Motor Corporation, XCMG Group, Liugong Group, and SEM Group. Our comprehensive after-sales service system can meet the diverse needs of our customers.
