Livestock Transport 3 Axles Side Wall Trailer Semi Trailer

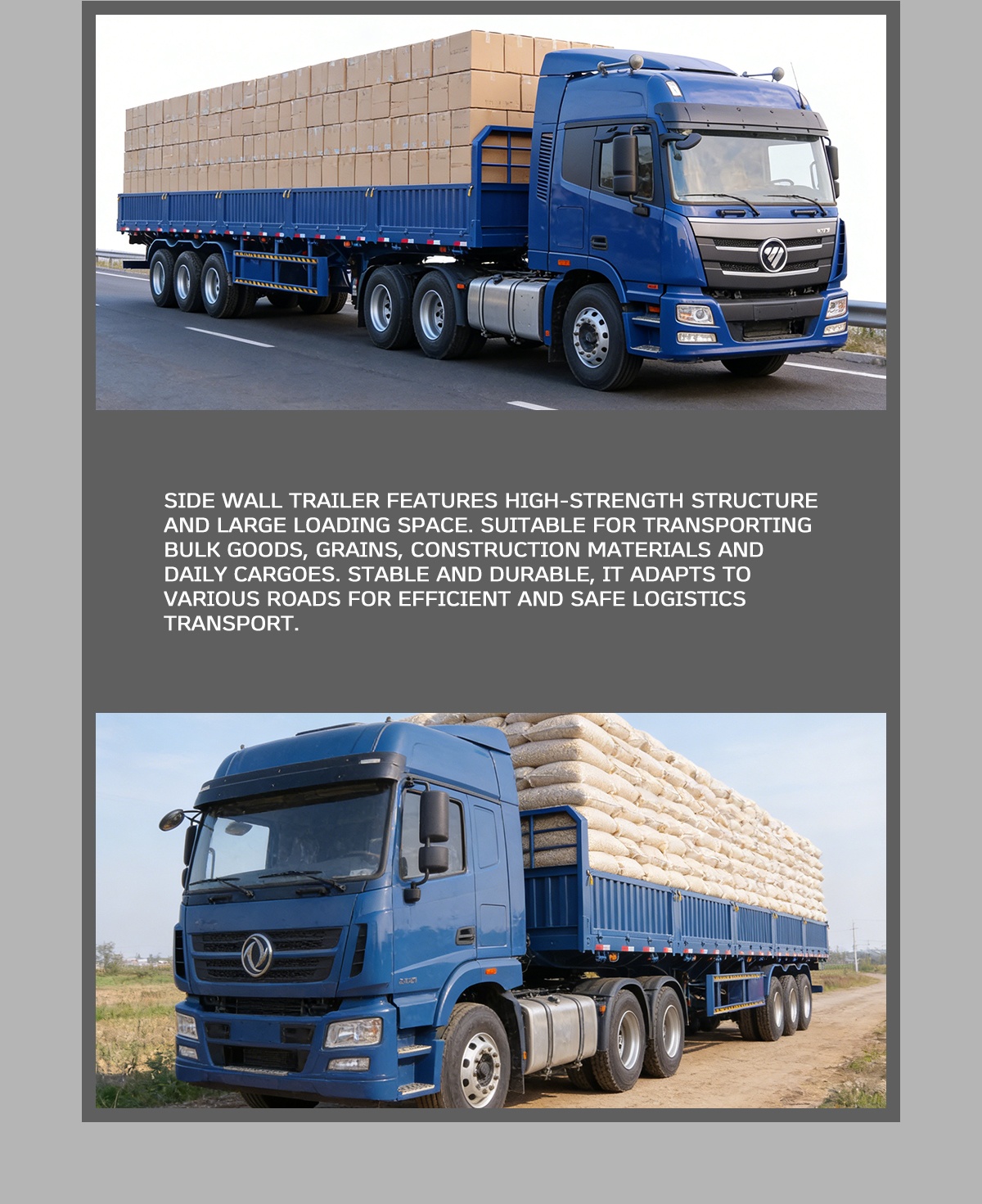

The 3 Axles Side Wall Trailer Semi Trailer combines the advantages of large capacity, high load capacity, and flexible loading and unloading, and is widely used in diverse transportation scenarios such as agricultural products, building materials, industrial products, bulk cargo, and palletized cargo. It is the most cost-effective main vehicle for highway trunk transportation.

Product Details

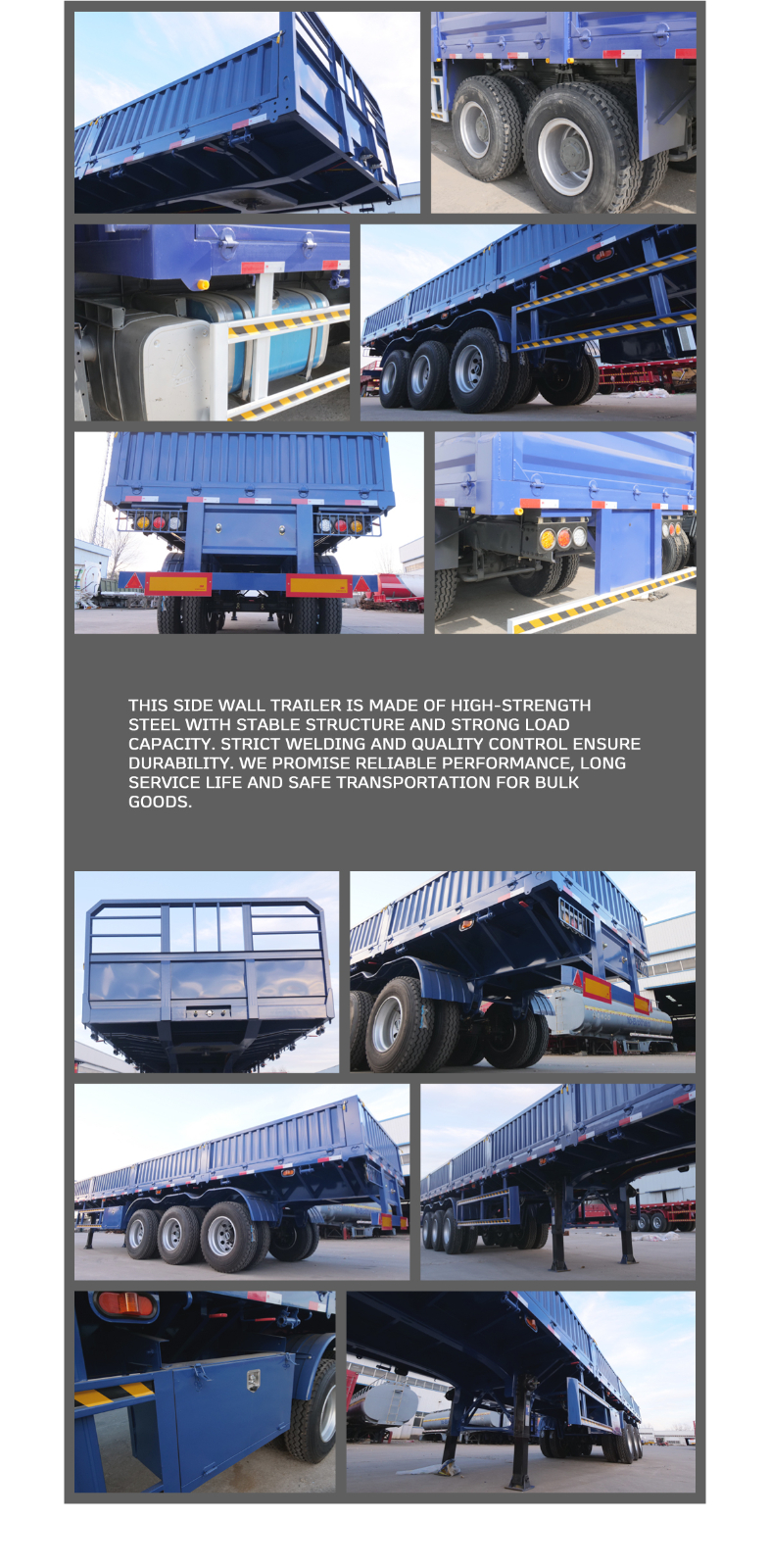

High-Strength Sidewall Structure:

Sidewalls are made of high-strength steel plate, stamped and formed, impact-resistant and deformation-resistant.

Corrugated sidewall design, rigidity is more than 30% stronger than flat structure.

Reasonable spacing of sidewall columns prevents lateral impact deformation of goods.

Full vehicle hot-dip galvanized anti-corrosion treatment, adaptable to harsh environments such as rain and salt spray.

Sidewall height can be customized (standard version 600mm/extended version 800mm/extra-high version 1000mm)

Extra-Large Capacity Cargo Box:

Cargo box length 12.5–13.8m, width 2.48–2.5m.

Effective volume 60–100 cubic meters, multiple specifications available. Extended sidewall version maximizes volume, allowing for more lightweight goods without exceeding weight limits. Extra-wide cargo box available (2.55m), maximizing loading within legal limits.

Optimized internal clearance height of the cargo box, allowing for multi-layer stacking of palletized goods.

Three-Axle Load Advantage:

Three-axle design, even axle load distribution, compliant with road regulations in various countries. Total weight can reach... 40–55 tons (with tractor unit)

Lift axle design (raised axle) reduces tire wear when unloaded.

Steering axle configuration improves maneuverability of extra-long vehicles.

Compatible with axle load restrictions in different countries, ensuring compliance in export markets.

High-strength frame:

Main beams are made of high-strength steel (Q345/Q550) with high yield strength.

I-beam cross-section main beams offer excellent bending and torsional resistance.

Thickened crossbeams with reasonable spacing ensure even load distribution and prevent deformation.

Reinforced gooseneck area strengthens stress concentration points in the traction pin region.

Excellent welding process throughout the vehicle ensures no cracking under long-term heavy loads.

、

Target Markets

African Agricultural Market: Durable, adaptable to various road conditions, easy to maintain – high-strength sidewalls, tri-axle stability, readily available spare parts

African Infrastructure Market: Heavy-duty, durable, cost-effective – high load capacity, strong frame, low procurement costs

Middle East Building Materials Market: Heavy-duty, high-temperature resistant, dust-resistant – anti-corrosion coating, enhanced heat dissipation, large capacity

Southeast Asian Agricultural Trade Market: Breathable and fresh-keeping, flexible loading and unloading, cost-effective – breathable sidewalls, multi-sided opening, low price

Domestic Trunk Transportation: Lightweight, fuel-efficient, compliant – aluminum alloy weight reduction, wide-base single tires, China VI emission standard compliant

European Export Market: Compliance certification, safety features, quality – ECE certification, EBS brakes, aluminum alloy body

Founded in 2003, Chengda Group boasts 23 years of manufacturing experience, exporting its products to over 80 countries and regions. We provide high-quality products and have obtained CCC, BV, ISO, and WMI certifications, with cumulative export value reaching US$5 billion. We are a leading supplier in the industry, exporting over 3,000 trucks, trailers, and cars annually.We have exported a large number of trucks to Africa! We have numerous loyal and stable customers from all over the world. Our trucks are exported to Africa, South Africa, Central Asia, the Middle East, South America, Southeast Asia, Asia, Eastern Europe, Latin America and other regions.
