Semi Trailer Parts Air Spring Brake Chamber Full Series

The semi-trailer air spring brake chamber, often simply referred to as a "spring chamber" or "dual-chamber chamber," is the core component of the semi-trailer braking system. It integrates both service braking and parking/emergency braking functions into one unit.

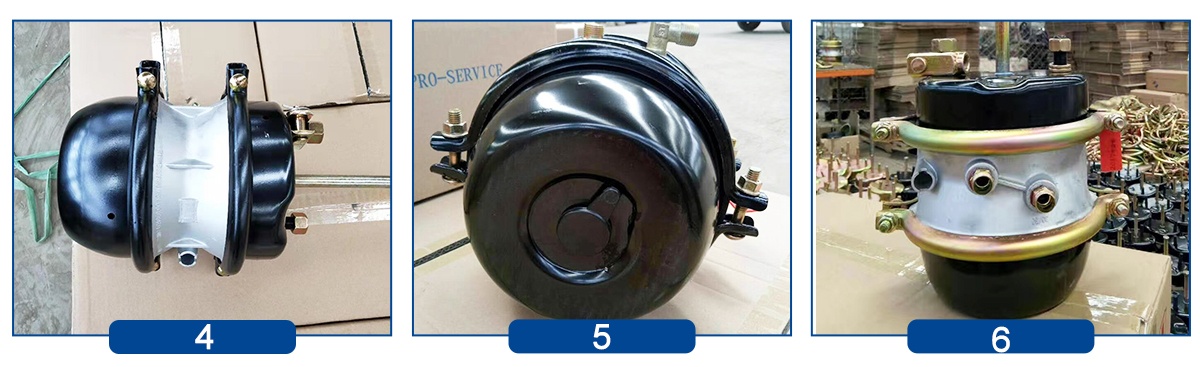

Product Details

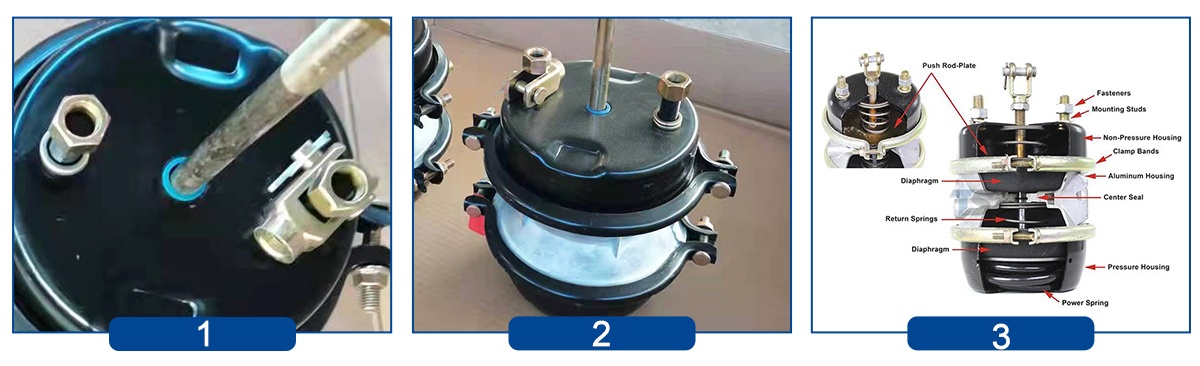

Service Chamber: Located at the front. When you press the brake pedal, compressed air enters this chamber, pushing the diaphragm and push rod to slow down or stop the vehicle.

Spring Chamber: Located at the rear. It contains a powerful coil spring. While the vehicle is in motion, the system's pressurized air compresses and locks the spring; when the air pressure is lost (e.g., when the vehicle is parked, the engine is turned off, or there is an air leak), the spring automatically releases, forcibly applying braking force via the push rod.

Powerful Spring: Provides mechanical braking force for stopping and emergency situations.

Diaphragm: Converts air pressure into mechanical thrust; requires wear resistance and high-temperature resistance.

Push Rod: Connects to the adjusting arm, transferring force to the brake pads.

Caging Bolt: Used to manually release the spring force when there is no air pressure.

Product Applications

Semi-trailer parking brake: This is the most common application. When the semi-trailer detaches from the tractor (in drop-and-hook transport) or is parked in a logistics park or dock, the driver pulls the handbrake valve. The air in the air chamber is expelled, and a powerful spring locks the wheels firmly, ensuring the vehicle won't roll away on various slopes.

Heavy-duty transport scenarios: Semi-trailers typically transport tens or even hundreds of tons of cargo. Traditional pure air brakes may not be sufficient to maintain a stop for extended periods under extreme conditions. The mechanical pressure provided by physical springs is extremely high and constant, making it an indispensable safety barrier for heavy trucks and trailers.

Product Transportation

According to the type and volume of the goods, professional packaging and shipping methods will help customers save freight to the greatest extent

By bulk: The cheapest way,put the trailer on the deck of the ship

By roro: The most protective way,put the trailer in the ship cabin

By flat rack container: one flat rack container can transport two tractor truck

Company Introduction

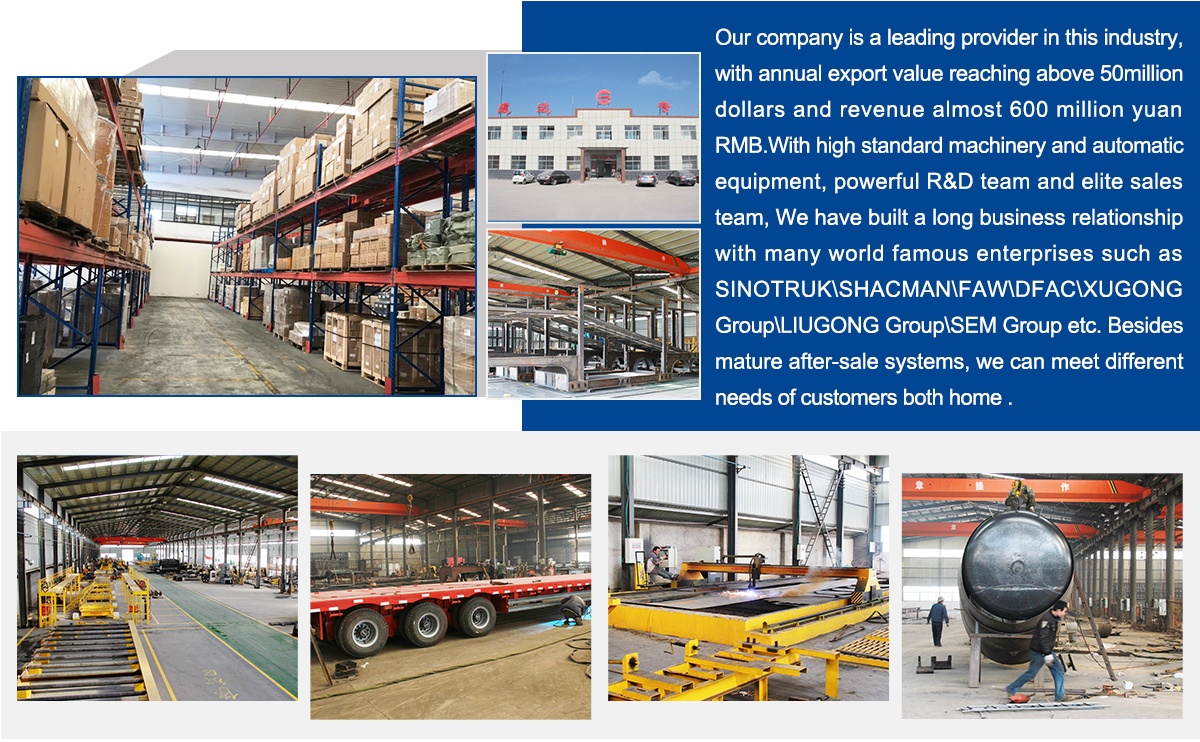

Chengda Group Established in 2003,23 Years Manufacturing Experience. Exported to 80+ Countries.We provide high-quality products and have obtained CCC, BV, ISO, and WMI certifications, with cumulative export value reaching US$5 billion. We are a leading supplier in the industry, exporting over 3,000 trucks, trailers, and cars annually. Leveraging high-standard machinery and automated equipment, a strong R&D team, and an elite sales team, we have established long-term cooperative relationships with many world-renowned companies such as China National Heavy Duty Truck Group, Shaanxi Automobile Group, FAW Group, Dongfeng Motor Corporation, XCMG Group, Liugong Group, and SEM Group.
