Heavy Duty Crane Truck 45ft Side Lifter Truck Trailer 37 Ton
Send Inquiry
Chat Now
Product Details

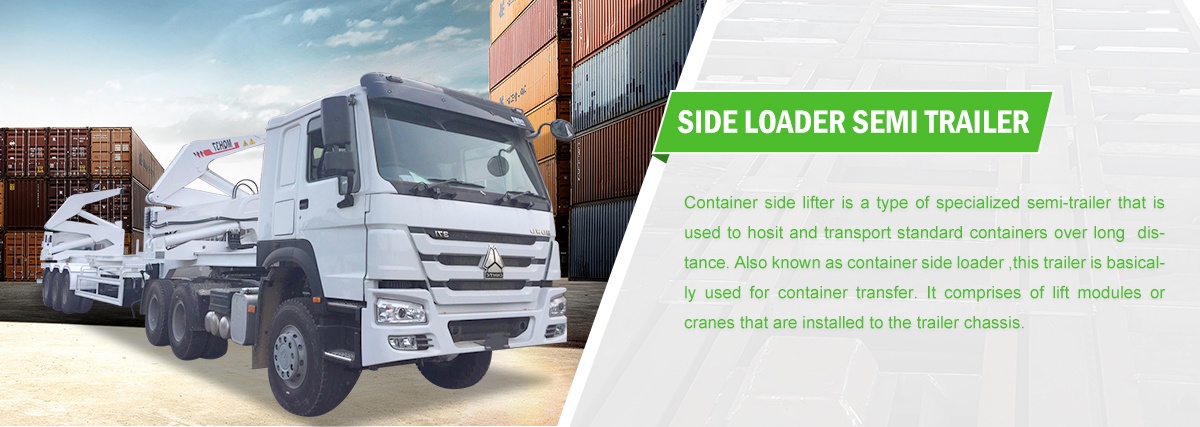

Sidelifter Truck Trailers are efficiency powerhouses for logistics and container transportation. Key reasons to buy: fully autonomous loading and unloading, no reliance on docks/cranes, door-to-door service in one truck, and extreme cost and time savings.
Product Specifications
| Max. lifting capacity | 37000kg | Outline dimension of semi-trailer(L×W×H) | 14100×2500×4000mm |
| Max. working range | 4000mm | Outline dimension of sidelifter(L×W×H) | 1020×2500×2490mm |
| Max. stabilizer outreach | 3200mm | Wheel base | 8000+1350+1350mm |
| Curb mass | 14500kg | Track(front axle/rear axle) | 1820/1820/1820mm |
| Mass of sidelifter | 7250kg | Front overhang / Rear overhang | -/2370mm |
| Maximum gross mass | 40000kg | Approach angle/Departure angle | -/13° |
| Axle Brand | FUWA 13Ton Axle | Function | Transport 2*20ft and 1*40ft container |

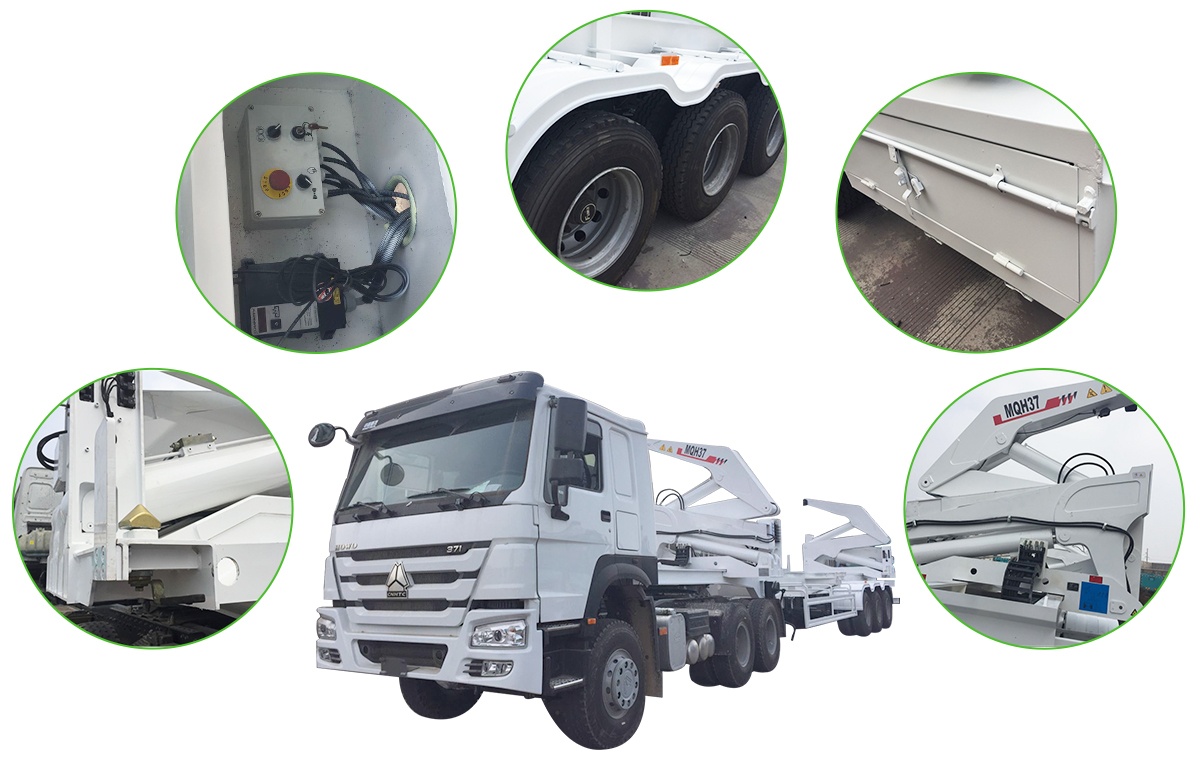

Self-loading and unloading, no external assistance required: Equipped with dual hydraulic booms, it can independently complete the entire process of loading, transporting, and unloading 20'/40' containers without relying on forklifts, cranes, or dock gantry cranes.
Lateral operation, space-saving: No need for vehicle turning around or large-scale repositioning, allowing flexible operation in narrow alleys, crowded factory areas, city alleys, and other areas inaccessible to large cranes.

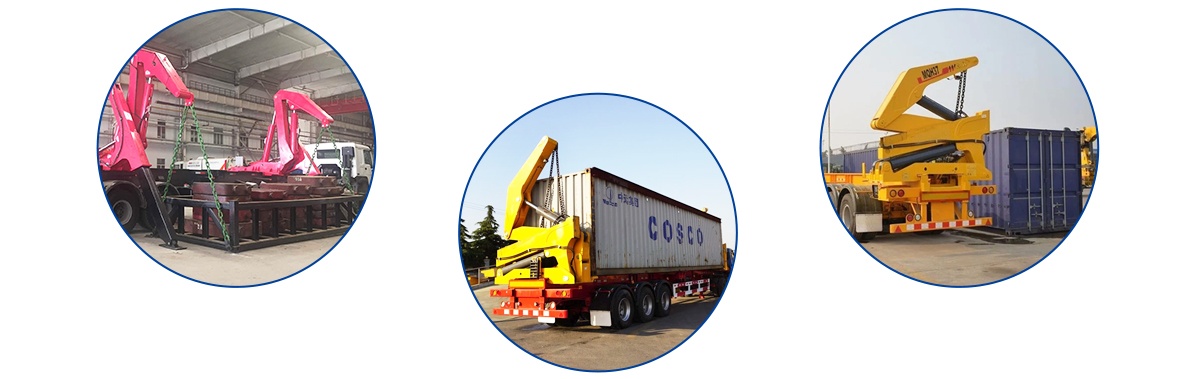

Compatible with all sizes of containers: Easily handles 20', 40', and 45' standard containers, high cube containers, and refrigerated containers.
Product Applications
Door-to-door container logistics
Construction site container transshipment
Engineering equipment and oversized cargo transportation
Port/yard container transshipment
Urban and confined area operations
Cold chain/special container transportation
Emergency rescue and disaster relief
Landscape, municipal, and power engineering
Mining, oil field, and field operations
Container leasing and warehousing services
Company Introduction
Chengda Group Established in 2003,23 Years Manufacturing Experience · Exported to 80+ Countries.We provide high-quality products and have obtained CCC, BV, ISO, and WMI certifications, with cumulative export value reaching US$5 billion. We are a leading supplier in the industry, exporting over 3,000 trucks, trailers, and cars annually. The company is a professional manufacturer integrating production, R&D, and sales. We have numerous loyal and stable customers from all over the world. Our trucks are exported to Africa, South Africa, Central Asia, the Middle East, South America, Southeast Asia, Asia, Eastern Europe, Latin America and other regions.
