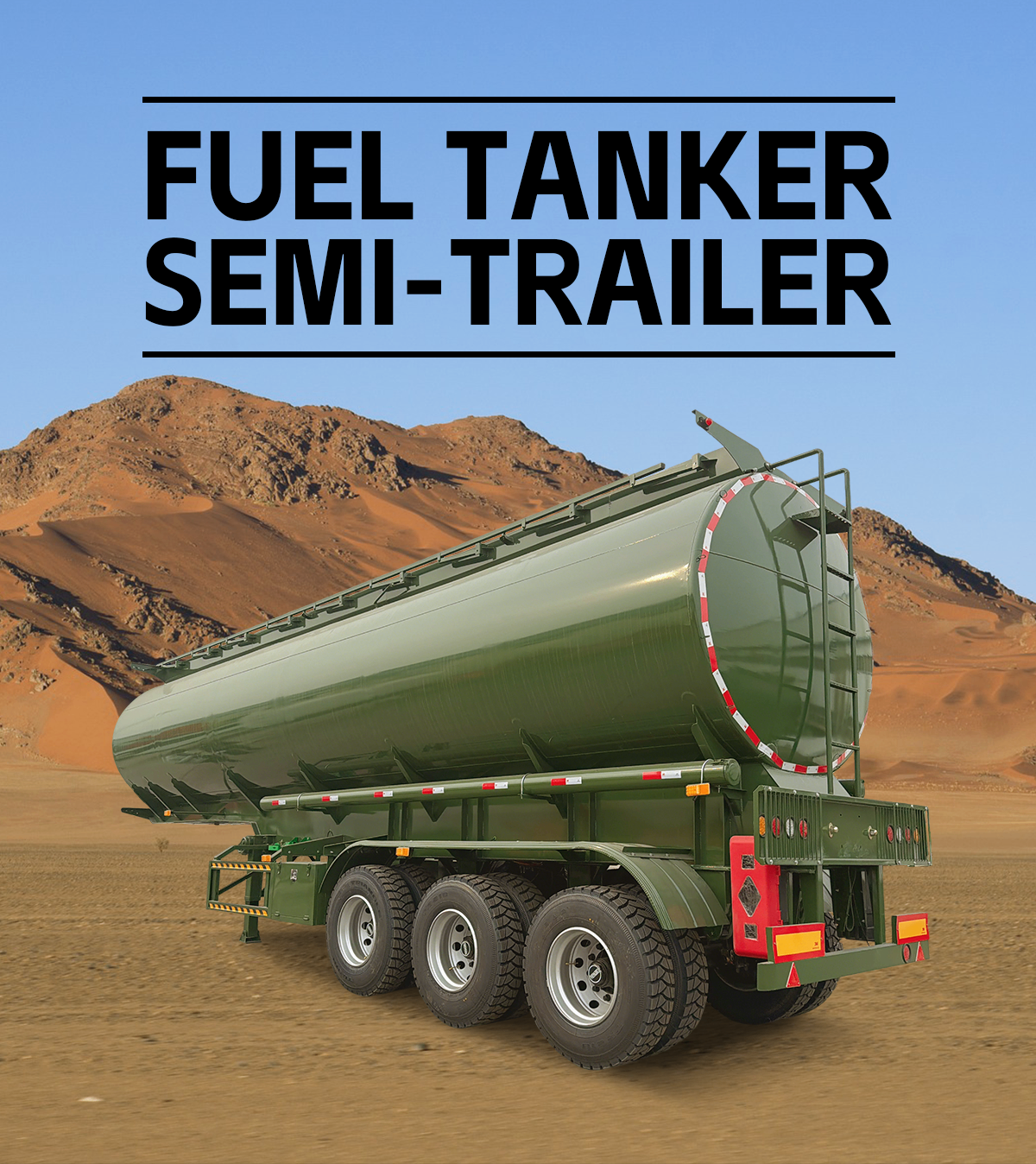

50Cbm 45000 Liters 3 Axles Oil Tanker Truck Semi Trailer

3 Axle Oil Tanker Trailer: A Customer's Choice

Our customers, in the oil transportation industry, ultimately chose the 3-axle oil tanker trailer because it perfectly met their transportation needs, balancing efficiency, safety, and cost, making it a reliable choice for their long-term operations.

Product Specifications

Suspension system ：Mechanical Suspension

Steel Spring ：10/10/10 pcs leaf spring with 90mm(W) *13mm(thickness)

Electrical System：Chinese standard 24V lighting system

Brake system：Dual line pneumatic brake, SAE hose and connector,no ABS

Brake air chamber：6 units T30/30 spring brake chambers

Emergency relay valve：Wabco relay valve

Traction/King Pin ：2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster

Landing Gear：Yahua brand 28ton external two speed telescopic manual operation

Thickness(mm)  ：Material Q235 carbon steel

Tank body and separate compartment plate:  5mm

Dish end plate:  6mm

Welding standard：All welding are to be done by qualified welder per applicable national standard

Company Introduction

Chengda Group Established in 2003,23 Years Manufacturing Experience. Exported to 80+ Countries.We provide high-quality products and have obtained CCC, BV, ISO, and WMI certifications, with cumulative export value reaching US$5 billion. We are a leading supplier in the industry, exporting over 3,000 trucks, trailers, and cars annually. The company is a professional manufacturer integrating production, R&D, and sales. We primarily manufacture tank trucks, cement bulk trucks, concrete mixer trucks, trailers, semi-trailers, tractor units, dump trucks, light trucks, construction machinery, and trailer accessories.
