3 Axle 40Ft Master Chassis Skeleton Container Semi Trailer

3. The Axle Skeleton Trailer is a semi-trailer specifically designed for transporting containers. It is known for its "skeleton" structure, eliminating the need for a floor and side panels, significantly reducing its weight. It is a core piece of equipment in modern logistics and multimodal transport and is chosen by many customers.

Product Introduction

Applicable Containers: Standard 20-foot, 40-foot, and 45-foot containers.

Number of Axles: 3 axles (Tri-axle), typically equipped with 13-ton to 16-ton axles.

Load Capacity: Designed load capacity is typically between 30 and 50 tons.

Material: High-strength low-alloy steel (such as Q345B or T700) ensures the frame is not easily deformed under heavy loads.

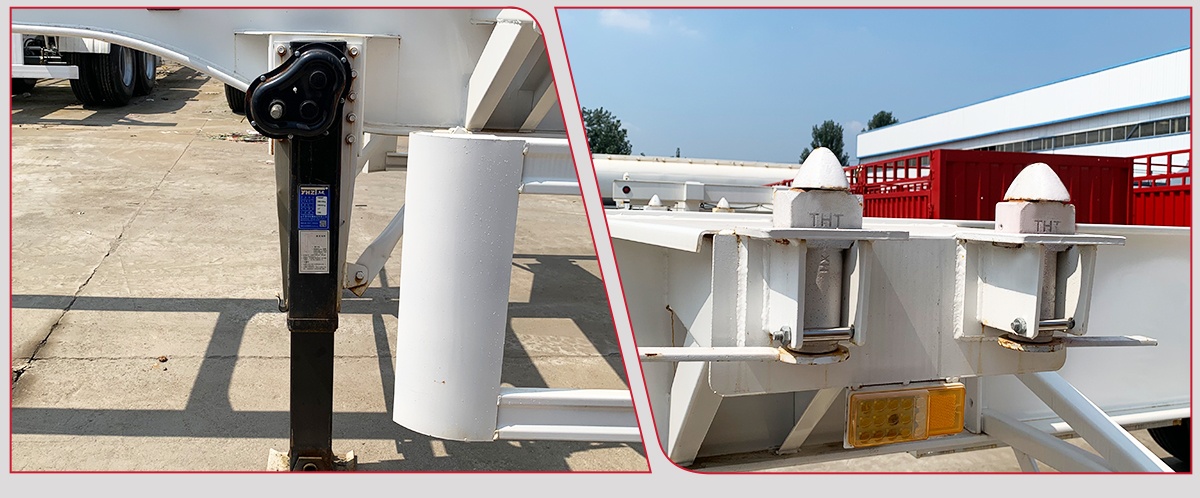

Locking: Equipped with 8 or 12 standard container turn locks for securing containers of different sizes.

Lightweight Design: Compared to flatbed semi-trailers, the skeleton trailer is lighter, effectively reducing fuel consumption and increasing payload.

High Durability: The frame is typically shot-blasted and KTL electrophoretic powder coating, providing excellent corrosion resistance, suitable for coastal port environments.

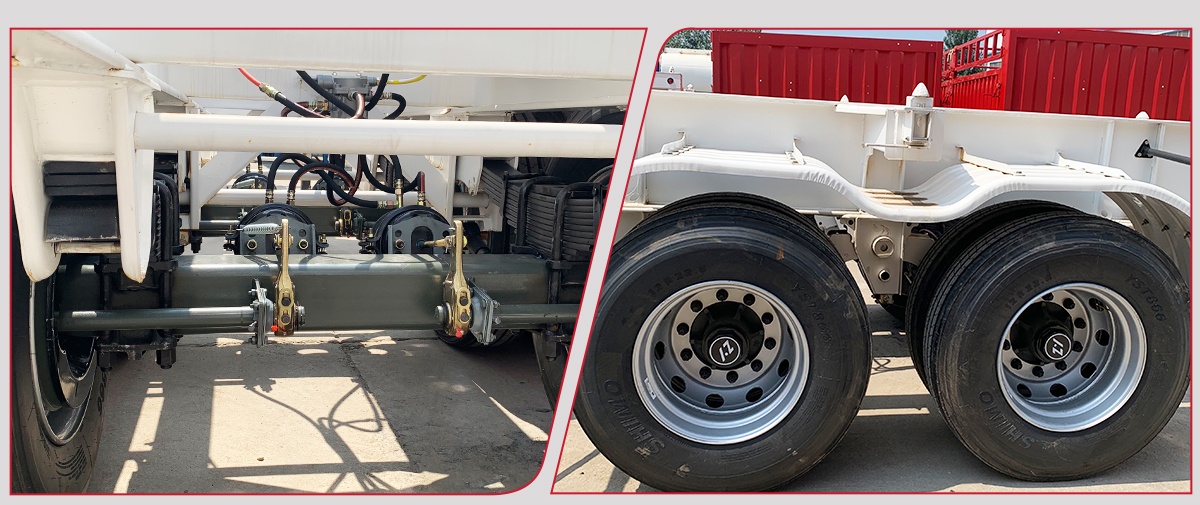

Suspension System: Optional mechanical leaf spring suspension or air suspension. Air suspension effectively absorbs vibrations, protecting fragile container cargo such as electronic components.

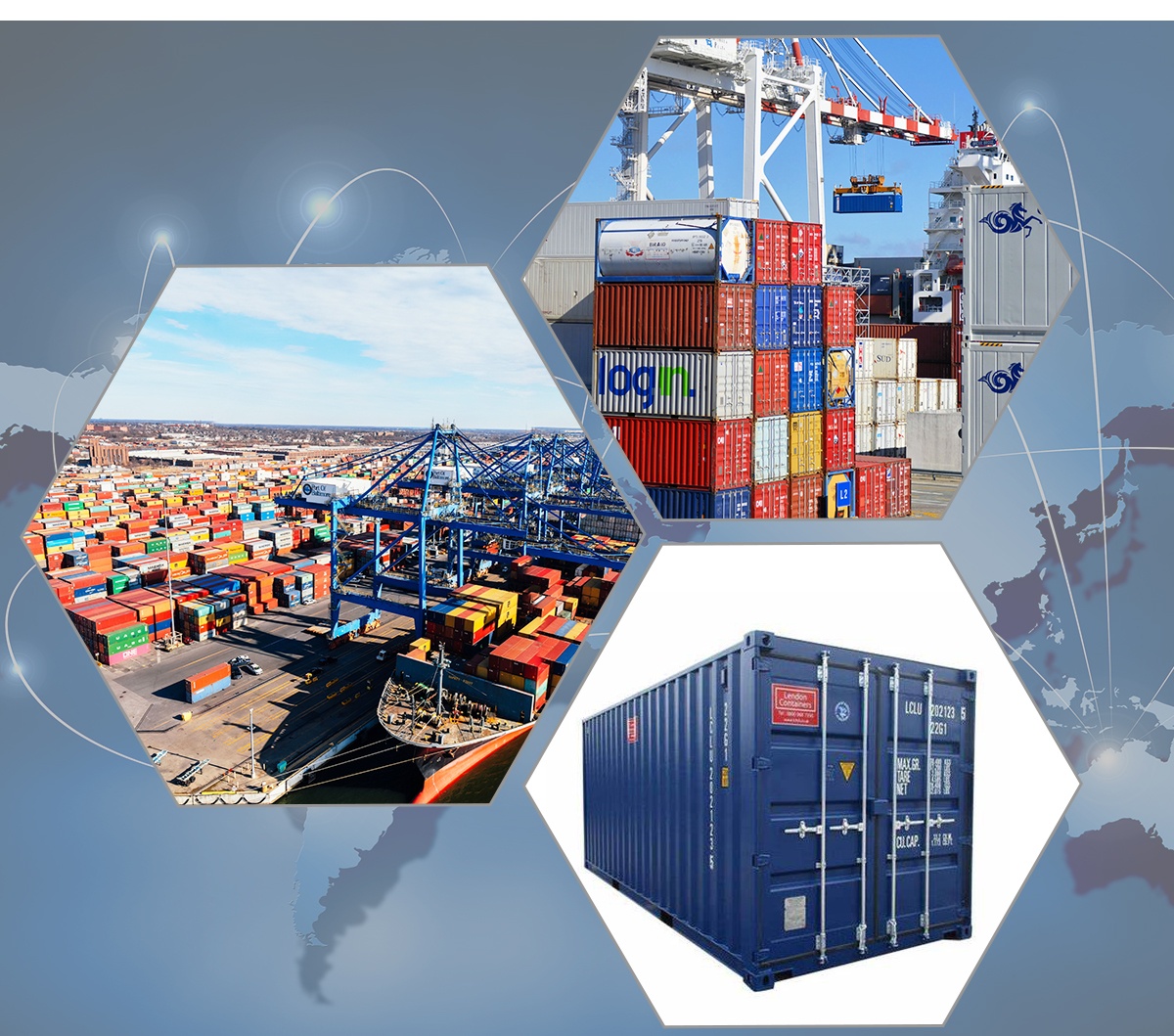

Application Scenarios

1. Port and terminal transshipment

2. Multimodal transport (sea-rail/sea-land intermodal transport)

3. Cross-border logistics and long-distance transportation

4. Transportation of dangerous goods and high-value cargo

5. Trailer swapping

Product Transportation

According to the type and volume of the goods, professional packaging and shipping methods will help customers save freight to the greatest extent

By bulk: The cheapest way,put the Trailer on the deck of the ship

By roro: The most protective way,put the Trailer in the ship cabin

By flat rack container: one flat rack container can transport two tractor truck

Company Introduction

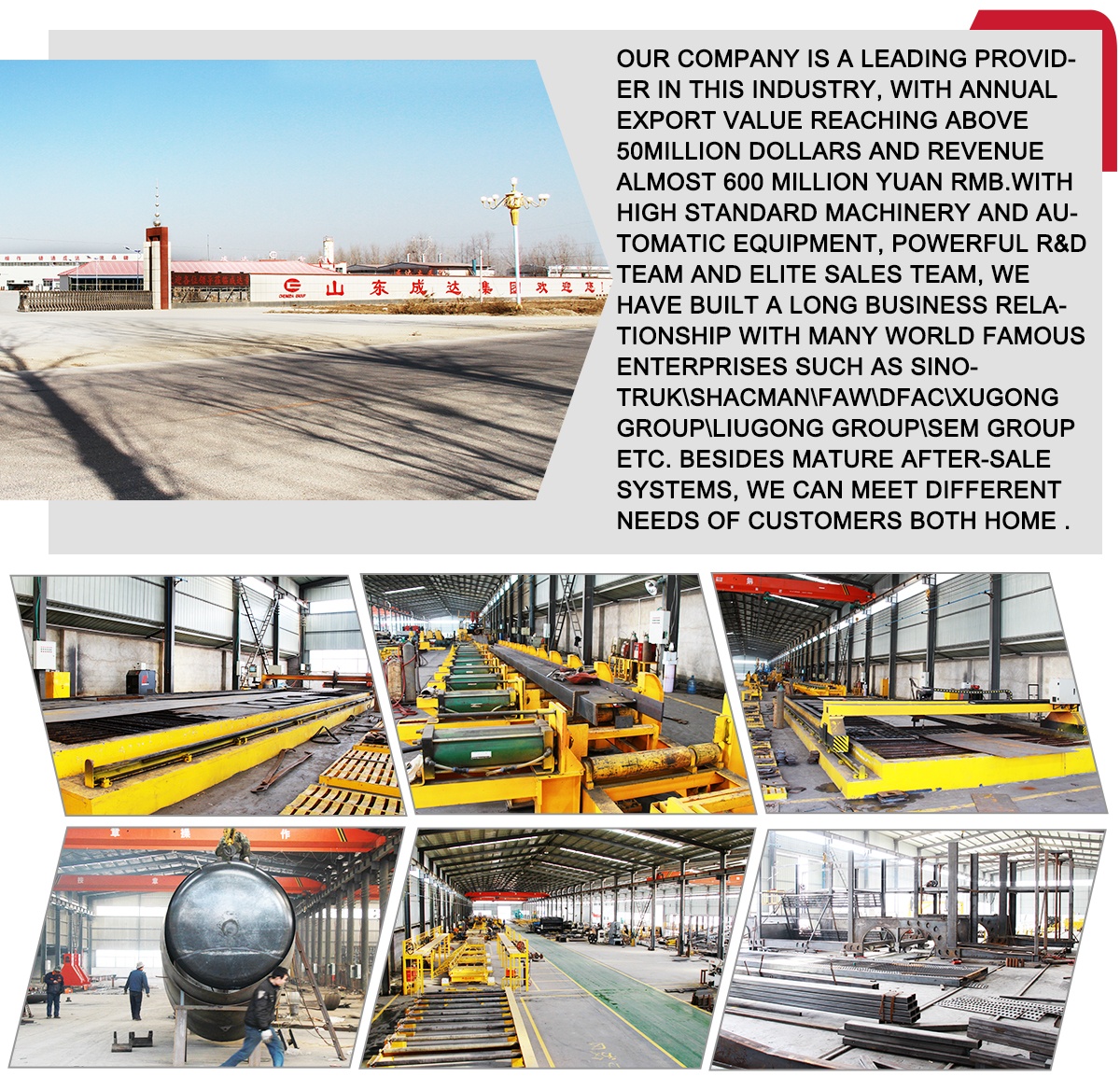

Chengda Group Established in 2003,23 Years Manufacturing Experience. Exported to 80+ Countries.We provide high-quality products and have obtained CCC, BV, ISO, and WMI certifications, with cumulative export value reaching US$5 billion. We are a leading supplier in the industry, exporting over 3,000 trucks, trailers, and cars annually. Leveraging high-standard machinery and automated equipment, a strong R&D team, and an elite sales team, we have established long-term cooperative relationships with many world-renowned companies such as China National Heavy Duty Truck Group, Shaanxi Automobile Group, FAW Group, Dongfeng Motor Corporation, XCMG Group, Liugong Group, and SEM Group.
