Why Choose the Howo 6x4 Dump Truck
The Howo 6x4 dump truck's heavy-duty structure and large load capacity perfectly match your business needs. Its reinforced chassis, robust cargo box, and durable hydraulic system mean it can safely transport large quantities of sand, gravel, soil, and mining materials. Larger loads per trip directly improve work efficiency.
Product Parameters
| Parameter | Specification |
|---|
| Overall Dimension | 8750×2550×3350 mm |
| Wheelbase | 4150+1300 mm |
| Drive Mode | 6×4 rear wheel drive |
| Wheel Quantity | 10 wheels |
| Curb Weight | 10200 kg |
| Gross Vehicle Weight | 30000 kg |
| Rated Payload | 25000 kg |
| Cargo Box Inner Size | 6100×2300×1380 mm |
| Cargo Box Volume | 19.5 m³ |
| Cargo Box Material | High strength wear-resistant manganese steel |
| Engine Type | Economic heavy duty diesel engine |
| Displacement | 9.3 L |
| Rated Power | 206 kW / 280 HP |
| Peak Torque | 1200 N·m |
| Emission Standard | Euro 2 / Euro 3 |
| Transmission | 10-speed manual gearbox |
| Maximum Speed | 73 km/h |
| Max Climbing Gradient | 24% |
| Lifting System | Full hydraulic automatic tipping system |
| Tire Specification | 12.00R20 heavy-duty tire |
| Braking System | Air pressure braking system |
| Fuel Tank Capacity | 340 L |
| Cab Type | Single row shock absorption cab |
Custom trailer available, contact us to get lowest factory cost!
Get a Free Quote Now
Brake system：
1.Service brake：Dual circuit compressed air brake
2.Parking brake：spring energy, compressed air operating on rear wheels
3.Auxiliary brake：Engine exhaust brake
Steering system ：Model-ZF8118 hydraulic steering with power assistance
Front axle ：HF9 , Steering with double T-cross section beam
Rear axle ：HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels
Color ：Optional (White ,Red ,yellow )
Tyre ：12.00R20 radial tires, 11pcs
Electrical system：Battery -2X12V/165Ah

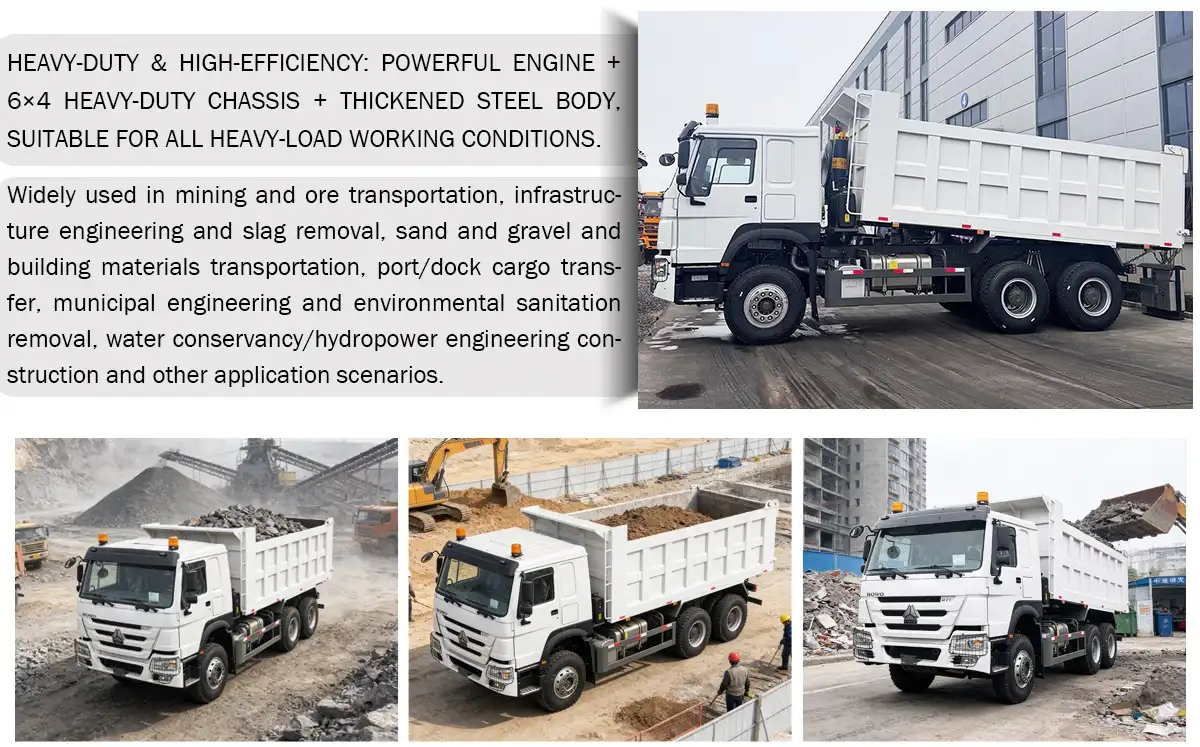

Application Scenarios of Howo 6x4 Dump Truck
1. Construction Engineering
2. Mining & Quarry Industry
3. Infrastructure Projects
4. Municipal Sanitation & Urban Renovation
5. Rural & Mountain Transportation
6. Water Conservancy & River Dredging
7. Logistics & Bulk Cargo Transport
In short, the Howo 6x4 dump truck performs well in almost all scenarios that require heavy load, off-road capability and high working efficiency.
Ready to enhance your transport efficiency?
Get a Free Quote Now
Chengda Group Established in 2003,23 Years Manufacturing Experience · Exported to 80+ Countries.We primarily manufacture tank trucks, cement bulk trucks, concrete mixer trucks, trailers, semi-trailers, tractor units, dump trucks, light trucks, construction machinery, and trailer accessories. Leveraging high-standard machinery and automated equipment, a strong R&D team, and an elite sales team, we have established long-term cooperative relationships with many world-renowned companies such as China National Heavy Duty Truck Group, Shaanxi Automobile Group, FAW Group, Dongfeng Motor Corporation, XCMG Group, Liugong Group, and SEM Group.
