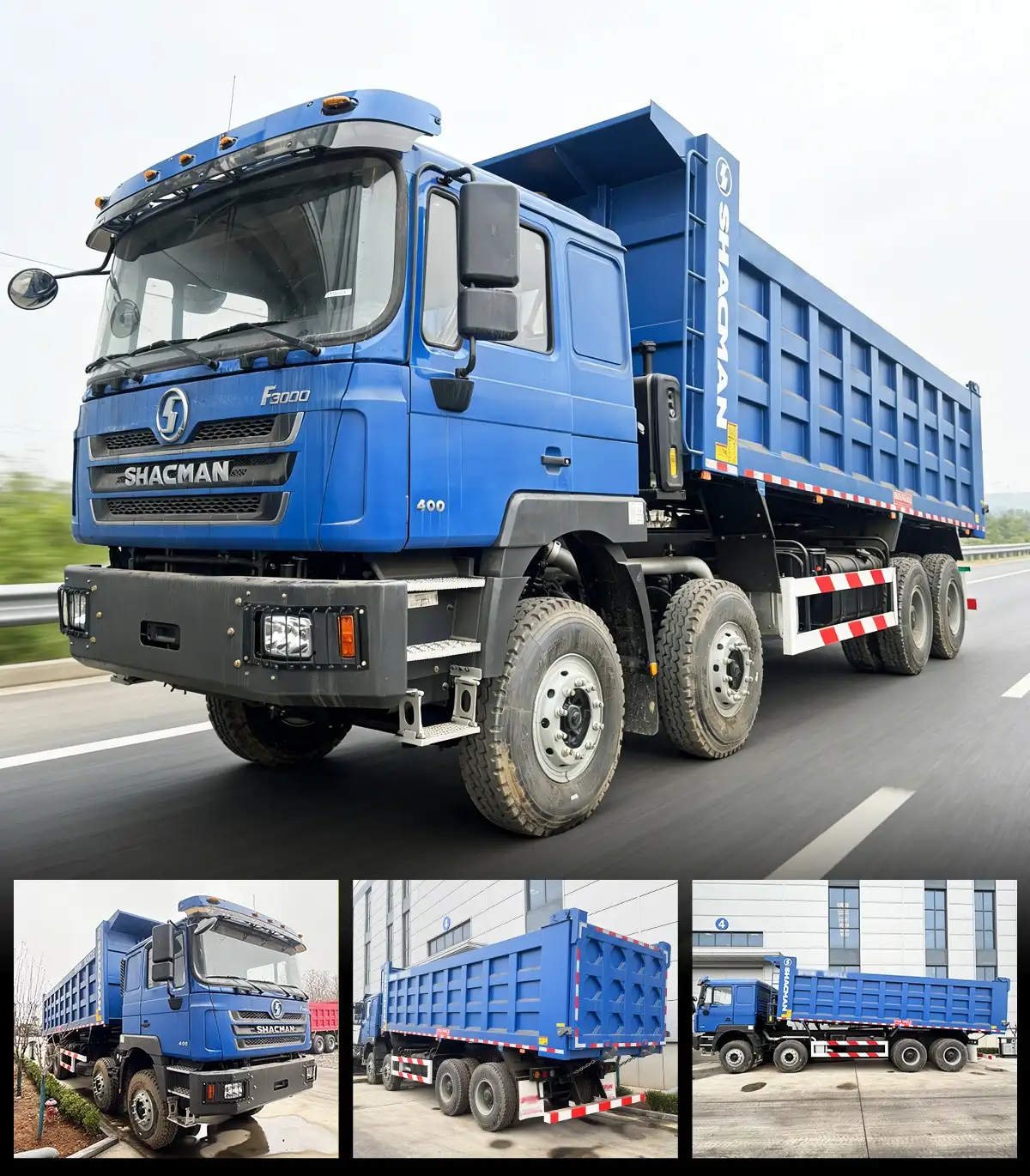

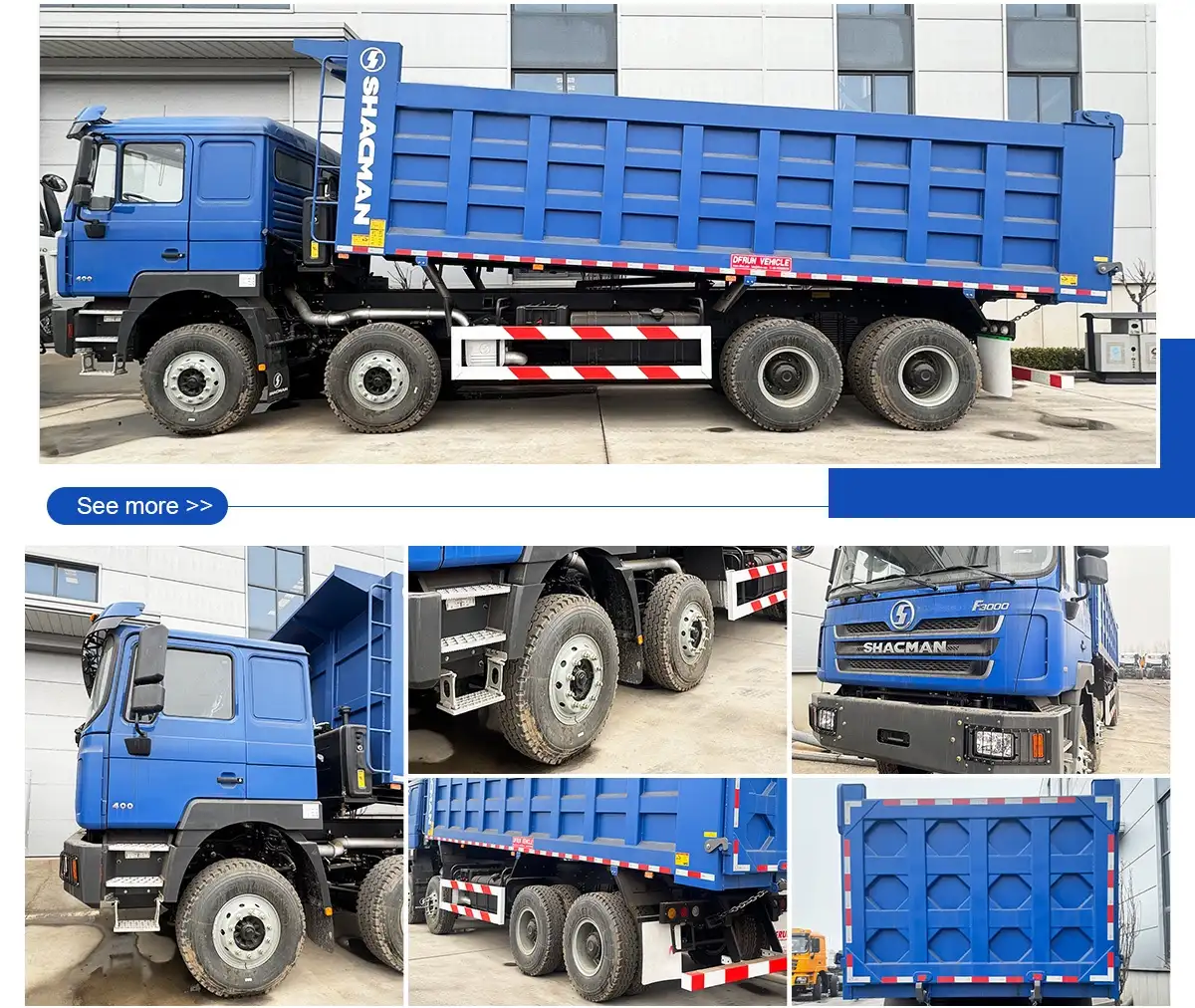

Key Reasons for Choosing the Shaanxi Automobile F3000 8X4 Dump Truck
As professionals deeply involved in engineering construction, mining, and waste transportation, we prioritize a comprehensive balance of load-bearing capacity, reliability, economy, and adaptability when selecting heavy-duty dump trucks. After comparing several models in the same class, the Shaanxi Automobile F3000 8X4 dump truck, with its mature and stable technology, superior heavy-duty capabilities, and lower overall cost, has become the first choice for fleet expansion and upgrades – it's not just a transportation tool, but a reliable partner that can continuously generate profits even in harsh working conditions.
Technical Specifications
| Parameter | Specification |
|---|
| Overall External Dimension | 9800×2550×3480 mm |
| Wheelbase | 4600+1350 mm |
| Drive Mode | 8×4 rear wheel drive |
| Curb Weight | 9000 kg |
| Gross Vehicle Weight | 31000 kg |
| Rated Payload Capacity | 22000 kg |
| Cargo Box Inner Size | 6800×2300×1500 mm |
| Cargo Box Volume | 23.5 m³ |
| Cargo Box Material | High strength manganese anti-wear steel plate |
| Engine Model | WP12 high power diesel engine |
| Displacement | 11.6 L |
| Rated Power | 276 kW / 375 HP |
| Peak Torque | 1600 N·m |
| Emission Standard | Euro 2 |
| Transmission Type | 12-speed manual mechanical gearbox |
| Maximum Travel Speed | 75 km/h |
| Maximum Climbing Gradient | 30% |
| Hydraulic Lifting System | Full hydraulic self-unloading system |
| Tire Specification | 12.00R20 heavy-duty steel radial tire |
| Braking System | Air brake with anti-lock protection |
| Fuel Tank Capacity | 400 L |
| Cab Type | Standard single row shock-absorbing cab |
Product Transportation
New Dump Truck Prices Naked,waxing,shipped by bulk carrier or by container,according to the size.
1.By Bulk Shipment,the truck is placed on the deck.
2.By Ro Ro Shipment,the truck is placed in the cabin.
3.By Flat Rack Container Shipment.
Ready to enhance your transport efficiency?
Get a Free Quote Now
Our Advantages
Chengda Group Established in 2003,23 Years Manufacturing Experience . Exported to 80+ Countries.We provide high-quality products and have obtained CCC, BV, ISO, and WMI certifications, with cumulative export value reaching US$5 billion. We are a leading supplier in the industry, exporting over 3,000 trucks, trailers, and cars annually. The company is a professional manufacturer integrating production, R&D, and sales. We primarily manufacture tank trucks, cement bulk trucks, concrete mixer trucks, trailers, semi-trailers, tractor units, dump trucks, light trucks, construction machinery, and trailer accessories.
