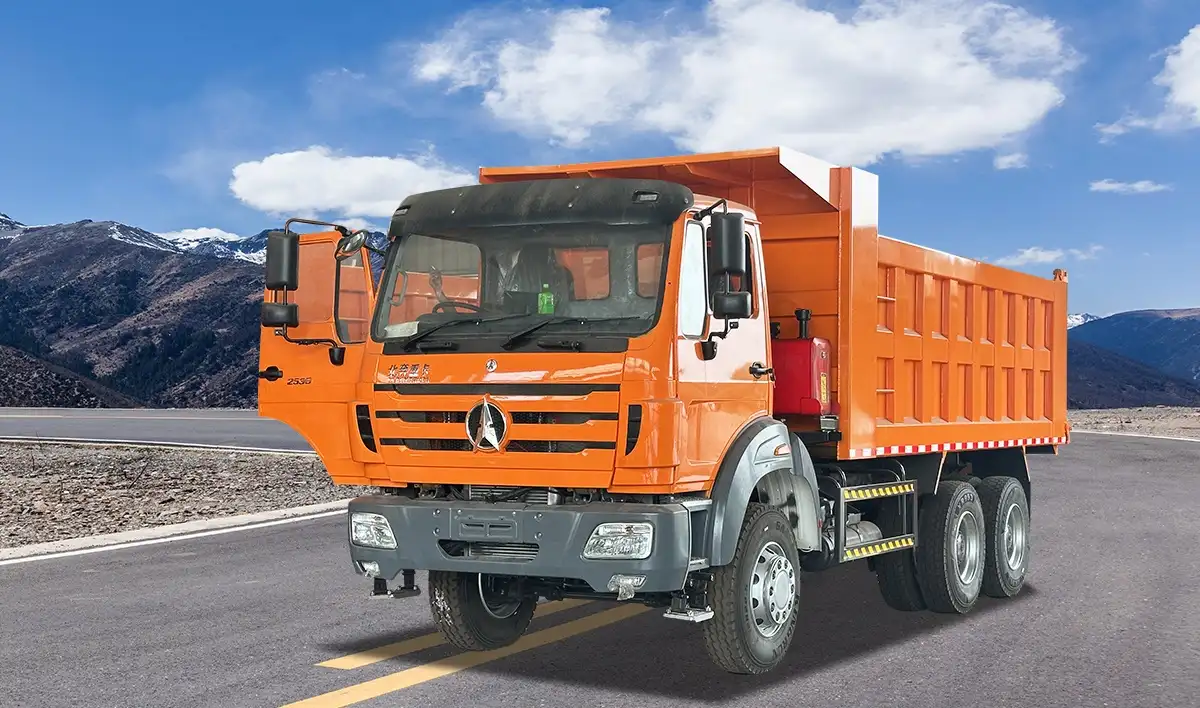

The Beiben 6X4 Dump Truck is equipped with weichai engines, with horsepower ranging from 336HP to 420HP, and maximum torque of 2100 N·m. It has strong climbing ability when fully loaded and is suitable for construction in mines and mountainous areas.
Technical parameters
| Parameter / Component | Detailed Specifications |
|---|
| Engine Model | WEICHAI WP12.375E40 (Euro II / Euro III / Euro IV Optional) |
| Engine Type | Inline 6-cylinder, 4-stroke, water-cooled, turbocharged & intercooled |
| Rated Power Output | 375 HP (276 kW) @ 2200 RPM |
| Maximum Torque | 1800 Nm @ 1000–1400 RPM |
| Displacement | 11.596 L |
| Transmission (Gearbox) | FAST 9JS180 / 12JSD180 (Manual, High-Low gear synchronization) |
| Clutch Type | Single-plate, dry diaphragm clutch, diameter 430mm (Hydraulic with air assist) |
| Drive Mode | 6X4 (Rear double-axle drive) |
| Front Axle | Mercedes-Benz technology 7.5 Ton / 9 Ton non-driving steering axle |
| Rear Axles | Mercedes-Benz technology 13 Ton / 16 Ton double reduction axle |
| Axle Ratio (Speed Ratio) | 5.263 / 5.921 (Optimized for heavy-load climbing) |
| Differential Locks | Equipped with inter-wheel and inter-axle differential locks |
| Frame Structure | Fishbelly shape, double-layer reinforced frame (317脳70脳8.5+7mm) |
| Suspension System | Heavy-duty multi-leaf springs (Front: 10/10; Rear: 13/13) |
Want to know about other parameters?
Click here to inquire
Load-bearing capacity
Rated load capacity: 25T - 40T. Customizable heavy-duty mining version is available.
Truck volume: 16㎥ - 25㎥. Options available. U-shaped/arc-shaped truck beds can be customized.
Front axle: 9T, rear dual axles: 16T each, total vehicle GVW up to 41T.
Transmission and drive
6×4 drive, three-axle six-wheel drive, excellent off-road performance
Transmission: 12-speed manual / automatic options available
Full-floating rear axle, excellent stability for heavy loads at low speeds

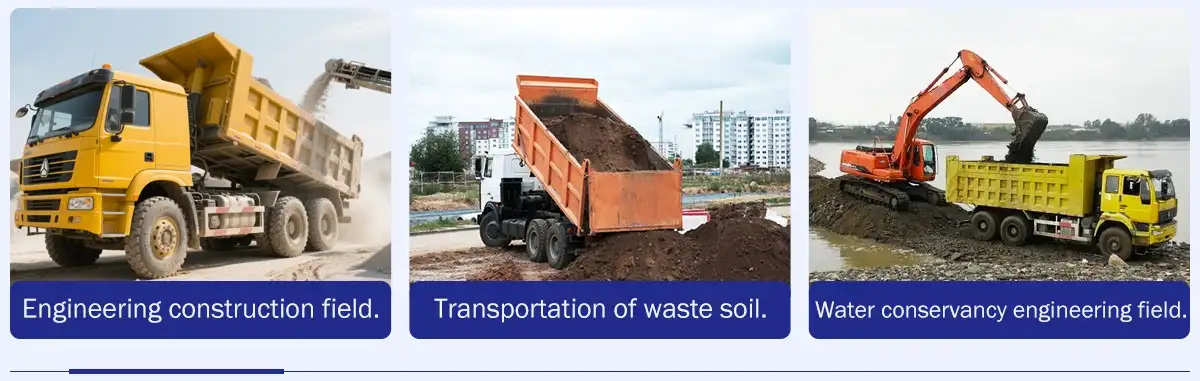

Application scenario
The Beiben 6X4 Dump Truck 375HP is engineered to excel in high-intensity environments. Its primary application fields include heavy-duty mining operations, large-scale infrastructure construction, urban earthwork excavations, and road building. Whether navigating rugged off-road terrains, muddy quarry sites, or steep mountain passes, its superior traction and robust chassis ensure uninterrupted productivity and efficient bulk material logistics.

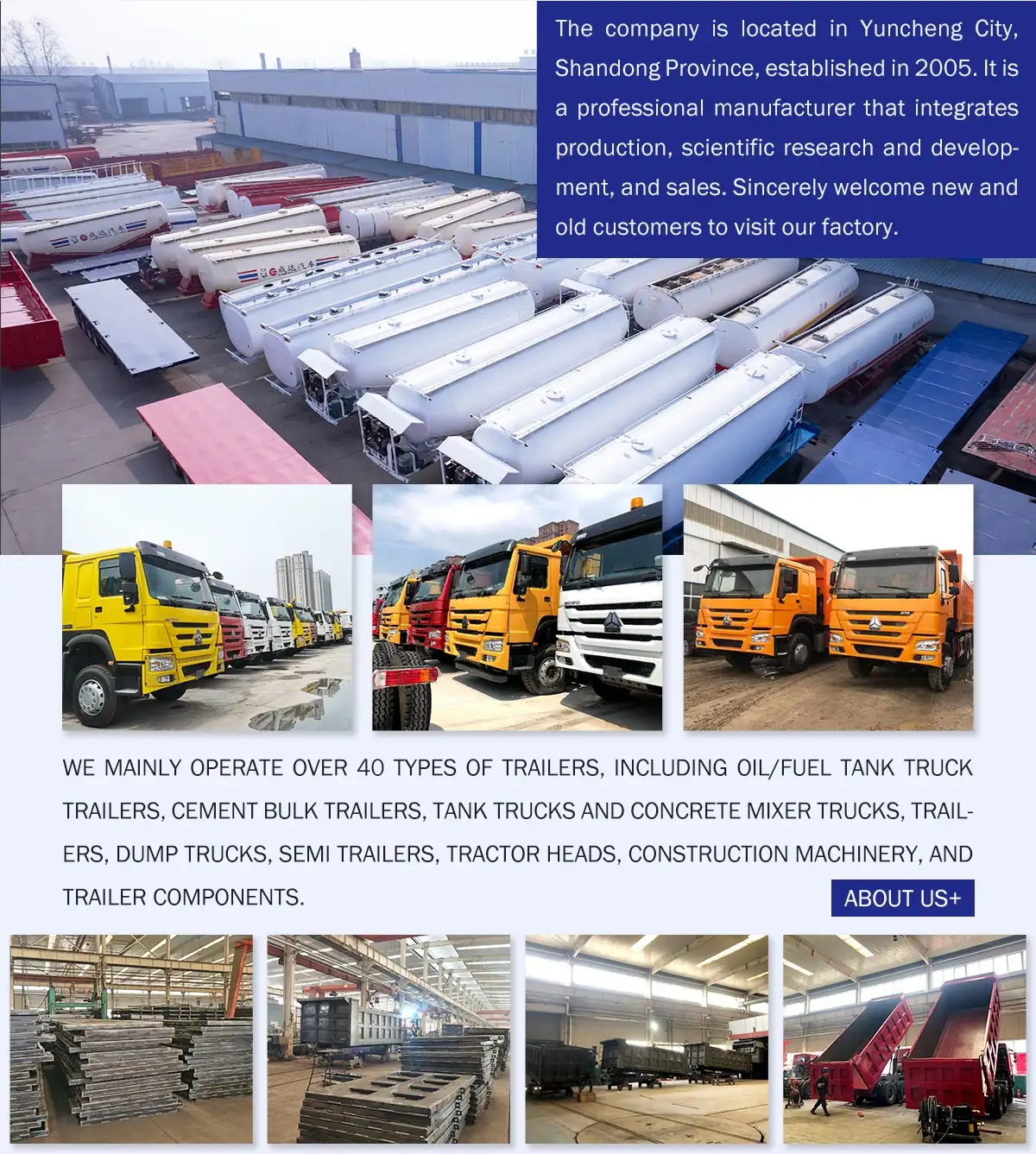

Chengda Group Established in 2003,23 Years Manufacturing Experience · Exported to 80+ Countries. We supply products with high quality and acquire CCC certification and BV, ISO, WMI certification, with Cumulative export volume of 5 billion US dollars. We are a leading provider in this industry.Annual export volume of over 3,000 units of trucks, trailers and cars.
